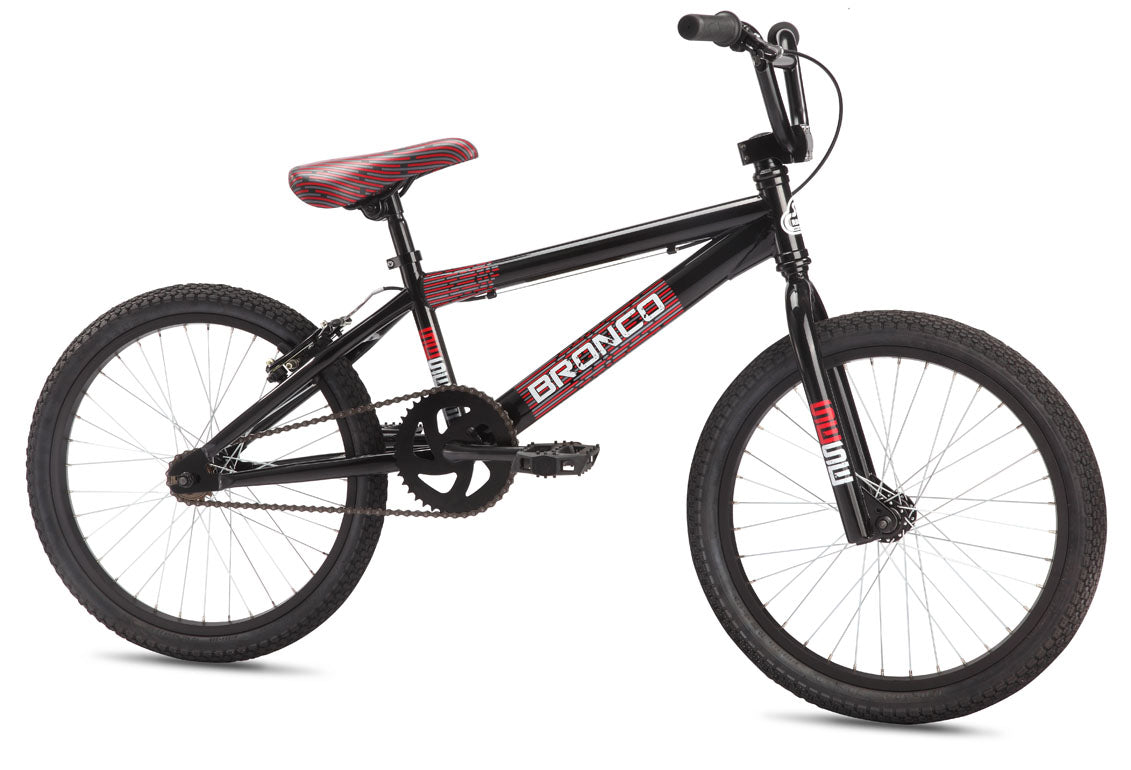

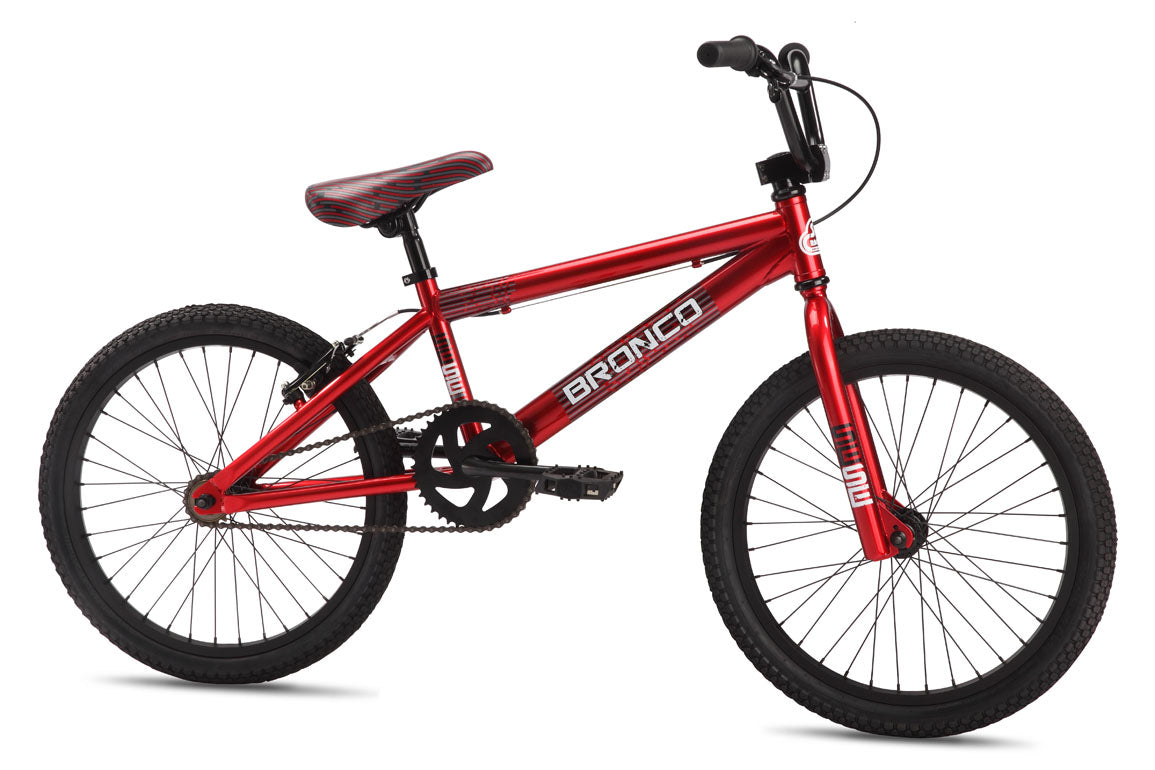

Bronco (2012)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | SE Racing Hi-ten |
| Fork | SE Racing 1-1/8" Threadless |
| Crankset | 1-pc Steel, American BB, 165mm, 40T |
| Pedals | Composite Resin |
| Chain | KMC Z410 |
| Wheelset | SE Racing 32H Hubs with Alex C1000 rims, 16T Freewheel |
| Tires | Innova, 20 x 1.95" F, 20 x 1.75" R |
| Brakeset | C-Star V-Brake |
| Brake Levers | Promax 2-Finger |
| Headset | Tange 1 1/8" Threadless |
| Handlebar | SE Wing Bar, 23" x 5.5" |
| Stem | SE Racing Front Load 1-1/8" Alloy |
| Grips | Mini Grip |
| Seat | SE Racing w/ Custom Imprinted Cover |
| Seatpost | SE Racing Straight Post, 25.4 |
| Wheel Size | 20" |
| Weight | 25.60lbs / 11.63kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 18.9" |
| Seat Tube, Center To Top | 10" | |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 73.5° |
| E | Chainstay Length | 13.9" |
| Wheelbase | 34.9" | |
| Seat Post Diameter | 25.4mm |
