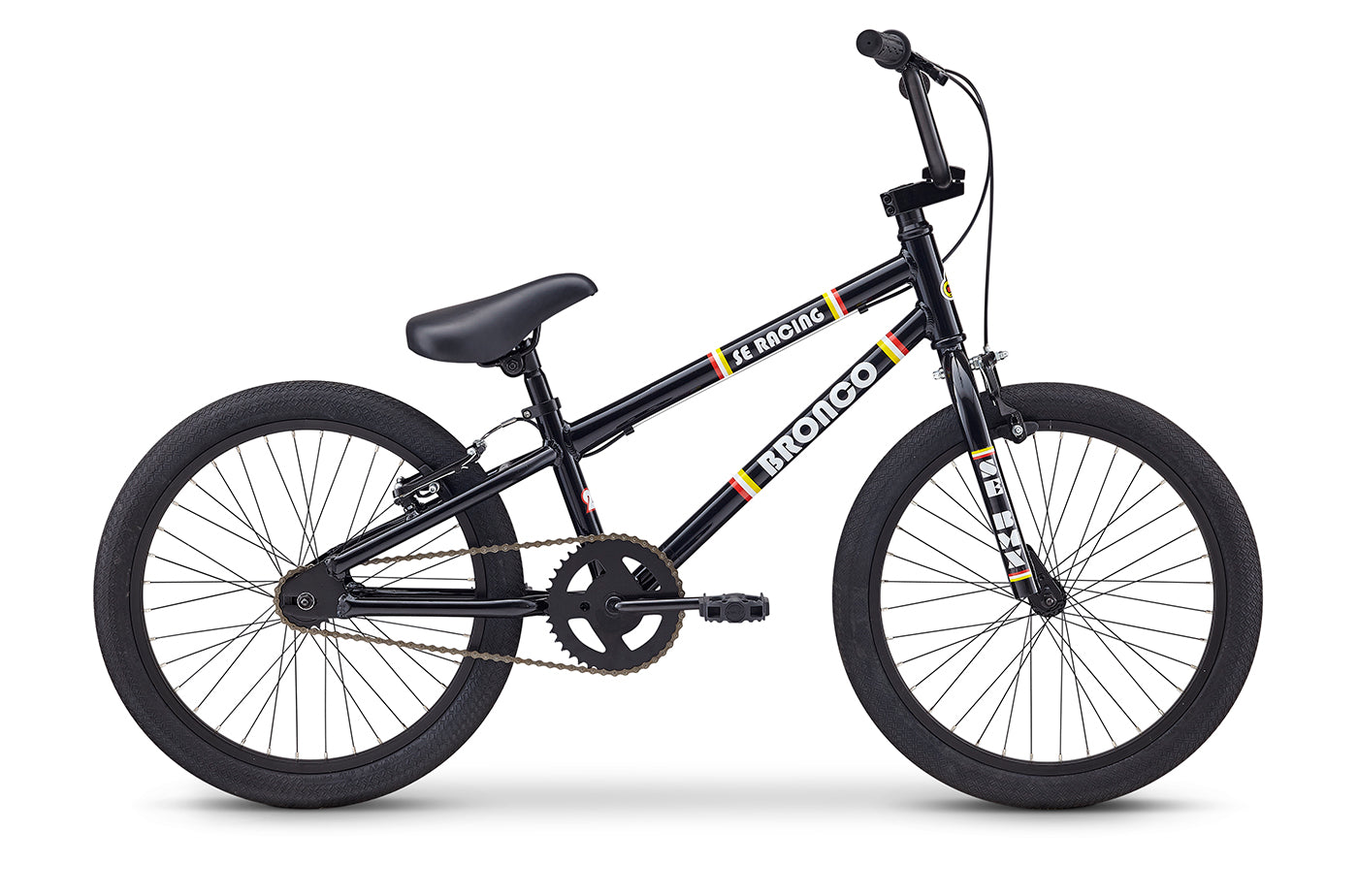

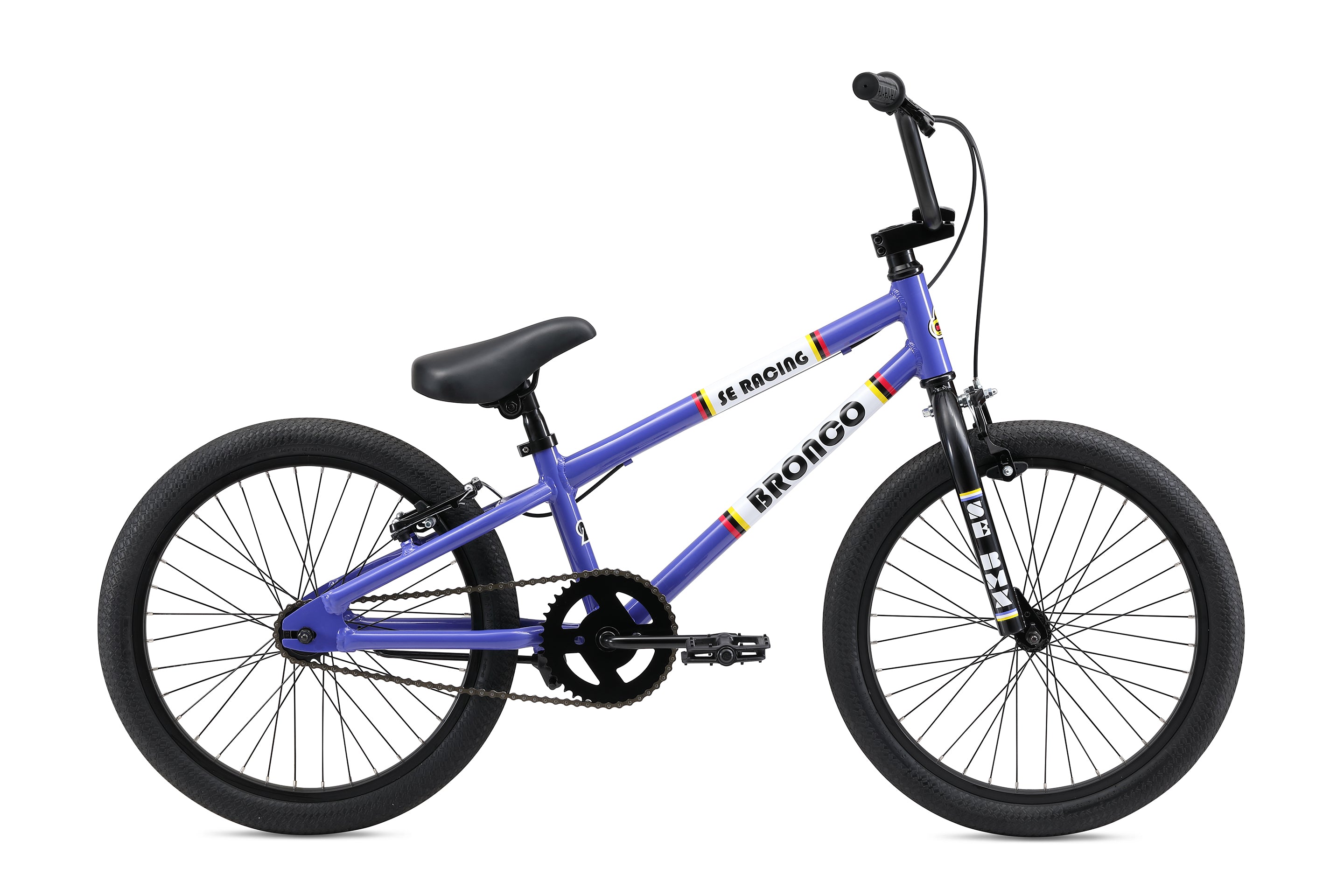

Bronco 20" (2019)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum, Sloping Top Tube w/ Low Standover |
| Fork | Hi-Ten Tubular |
| Crankset | One-piece Steel, 140mm, 40T Sprocket |
| Pedals | Resin Platform |
| Chain | KMC S1 |
| Wheelset | 36H Alloy Rims, 16T Freewheel |
| Tires | 20" x 2.1" Front & Rear |
| Brakeset | Rear Alloy V-Brake, Alloy Caliper Front |
| Brake Levers | Alloy 2-Finger, Front & Rear |
| Headset | 1-1/8" Threadless |
| Handlebar | 23" x 6.3" |
| Stem | Top-Load Alloy, 45mm Reach |
| Grips | Kraton |
| Seat | SE Racing |
| Seatpost | SE Straight Post, 27.2mm |
| Seat Clamp | Alloy, 31.8mm Inner Diameter |
| Accessories | SE Handlebar Pad, Kickstand |
| Wheel Size | 20" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 19.1" |
| Seat Tube, Center To Top | 9.8" | |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 73° |
| E | Chainstay Length | 14.3" |
| Wheelbase | 35.1" | |
| G | Bottom Bracket Height | 10.7" |
| Standover | 21.8" | |
| Stem | 45mm | |
| Handlebar Width | 23" | |
| Crank | 140mm | |
| Wheel Size | 20" | |
| Seatpost Diameter | 27.2mm |
