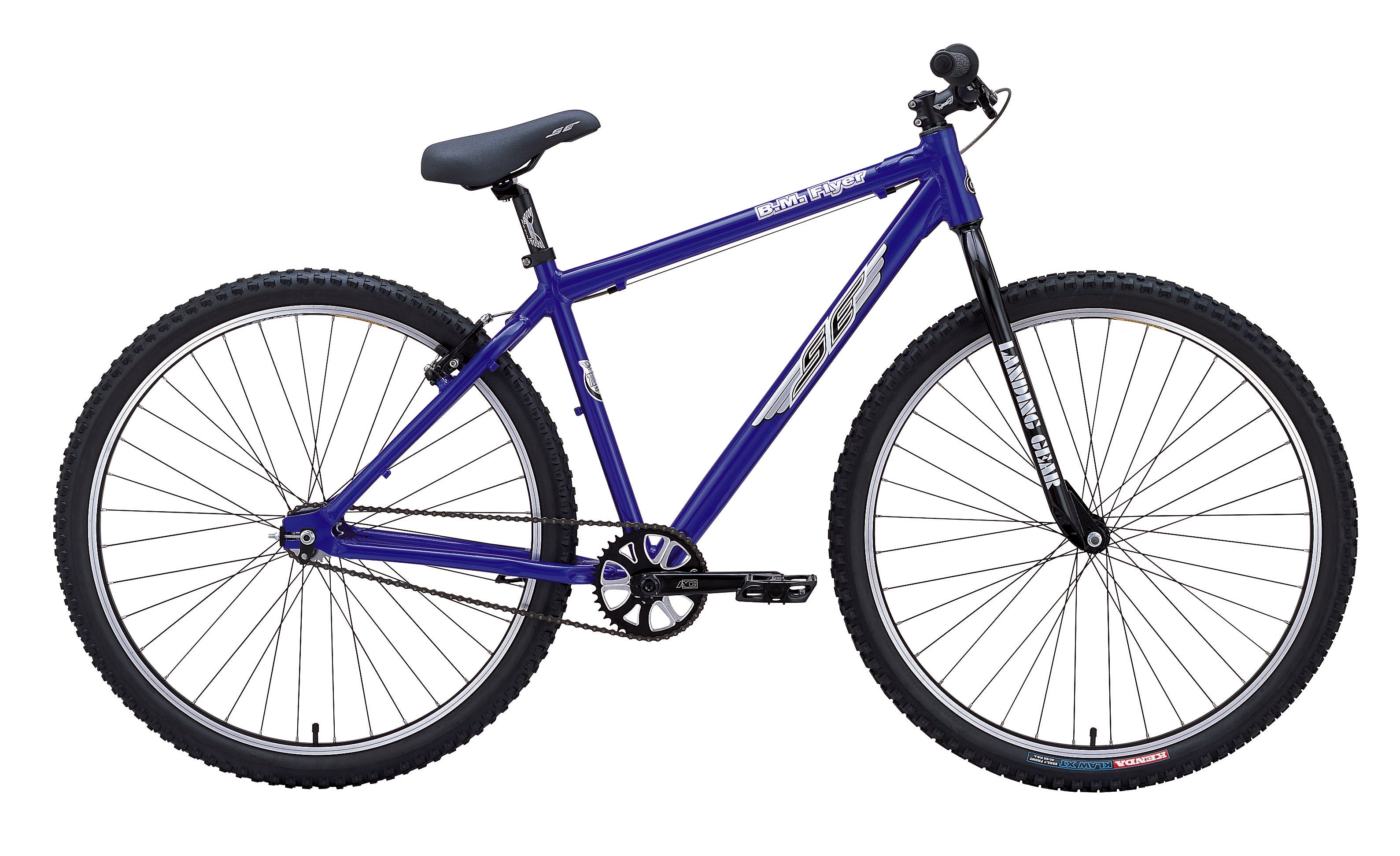

BM Flyer 29"
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 7005 AluminumTubing w/ Integrated Head Tube |
| Fork | CR-MO 1-1/8" |
| Crankset | AC ProSpeed 001, 3-pc Tubular CR-MO, 180mm; AC, AC/DC 41T Aluminum Sprocket; AC, Euro, 4 Sealed Cartridge Bearings, 10 spline spindle |
| Pedals | Wellgo Alloy Platform w/ CR-MO Axle |
| Cassette | 18T Cassette |
| Chain | KMC Z30 |
| Wheelset | Alex DM18 36H Double Wall Aluminum 29er w/CNC sidewall; SE Racing Cartridge Sealed Bearing, 36H Alloy Front Hub; SE Racing, Cassette, Cartridge Sealed Bearing, 36H Alloy Rear Hub; Stainless 14 Ga. Spokes |
| Tires | Kenda Klaw XT, 29 X 2.1 Front & Rear |
| Brakeset | Tektro 837AL V-Brake Front & Rear |
| Brake Levers | Tektro 313A, 2 Finger Alloy Front & Rear |
| Headset | VP 1-1/8" Threadless Press Fit Integrated |
| Handlebar | SE Racing 1.25" Riser Bar, Alloy |
| Stem | SE Racing Front Load Shorty, 1-1/8" Alloy |
| Grips | SE Racing Custom Kraton Rubber |
| Seat | SE Racing with custom imprinted cover |
| Seatpost | SE Racing Micro-Adjust Aluminum 27.2 |
| Seat Clamp | SE Racing Alloy |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 21.5" |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 71° |
| E | Chainstay Length | 18.5" |
| G | Bottom Bracket Height | 11.8" |
| Seat Tube Length | 17" | |
| Wheel Size | 29" |
