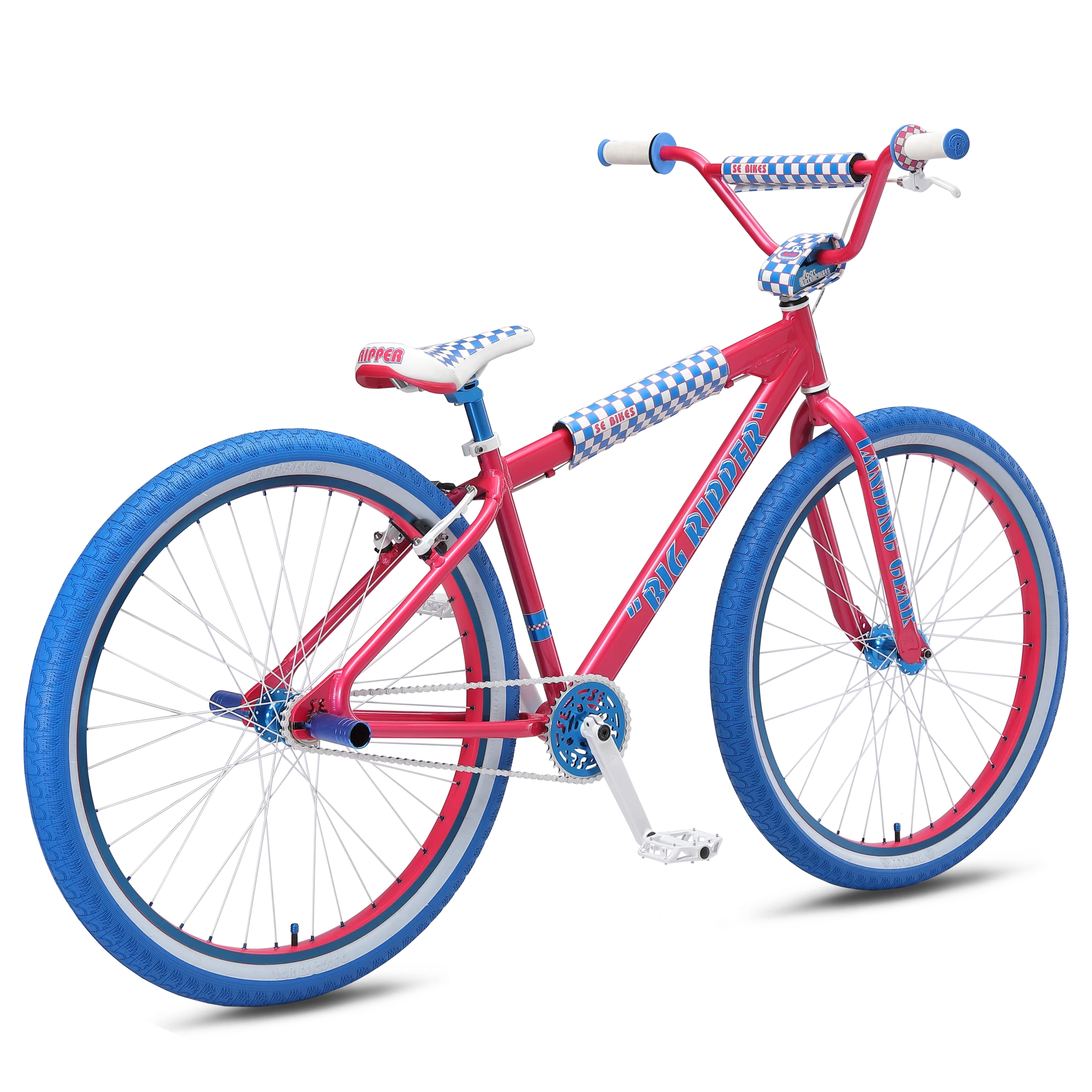

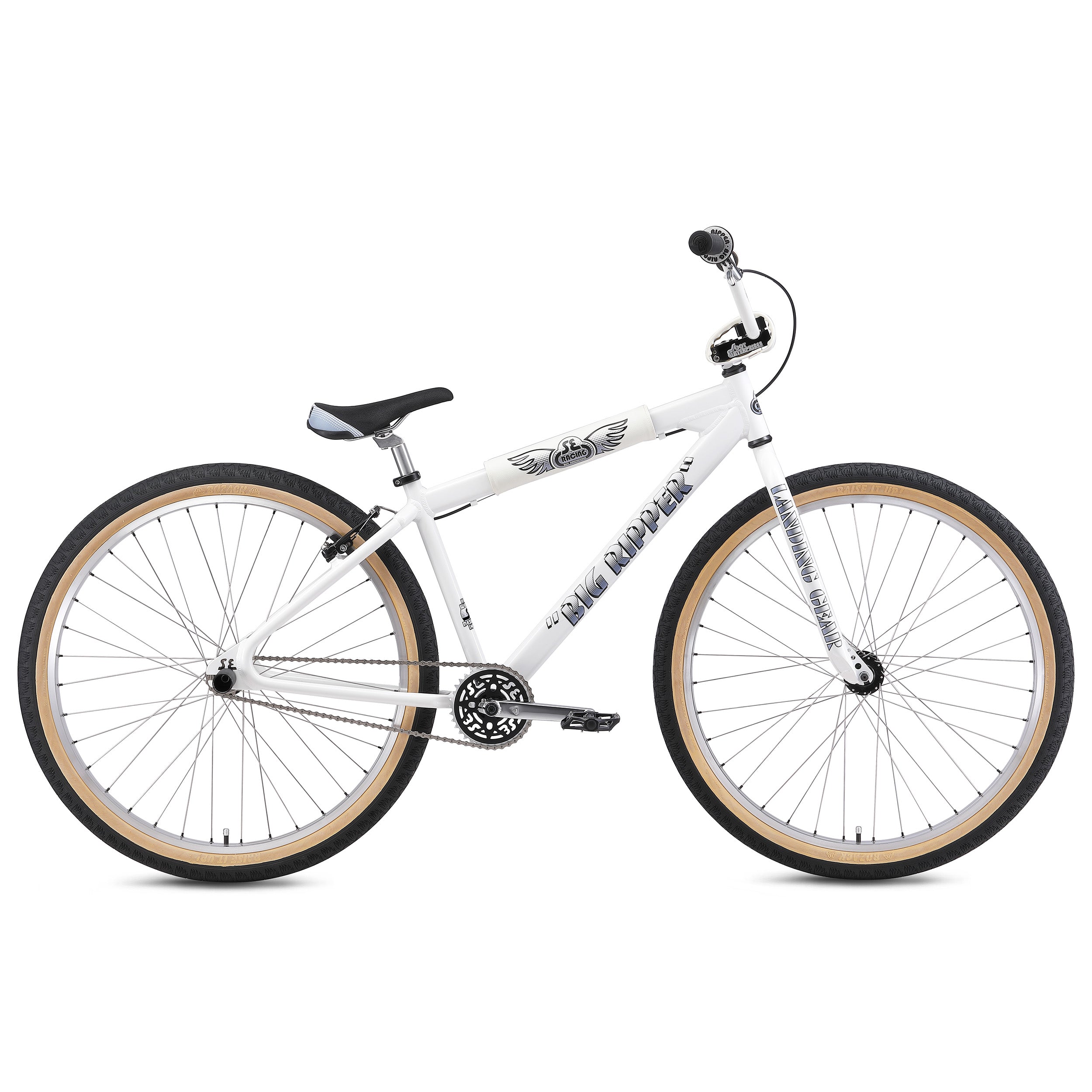

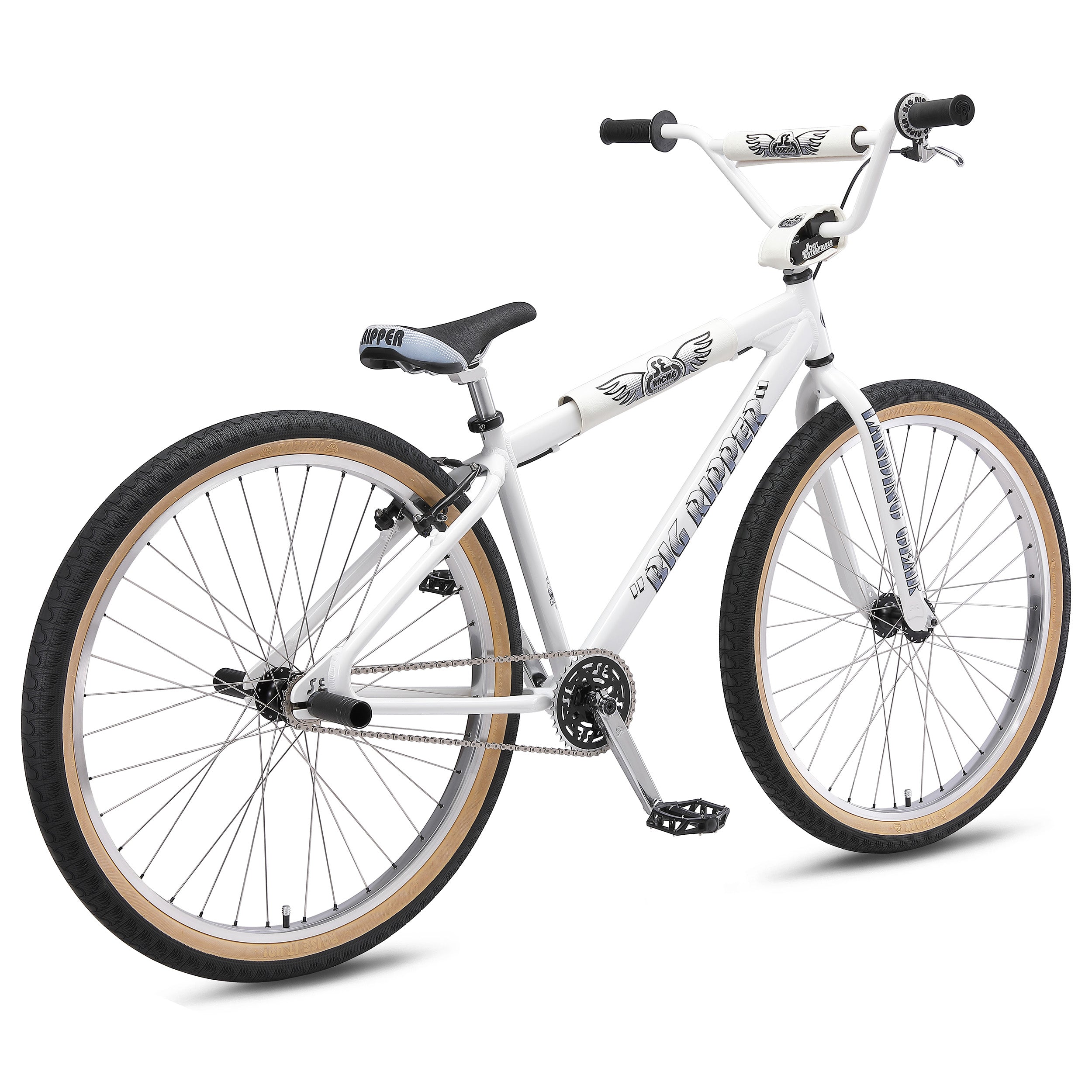

Big Ripper 29"
Big Ripper 29"
Big Ripper 29"

Big Ripper 29"

$1,049.99
Description

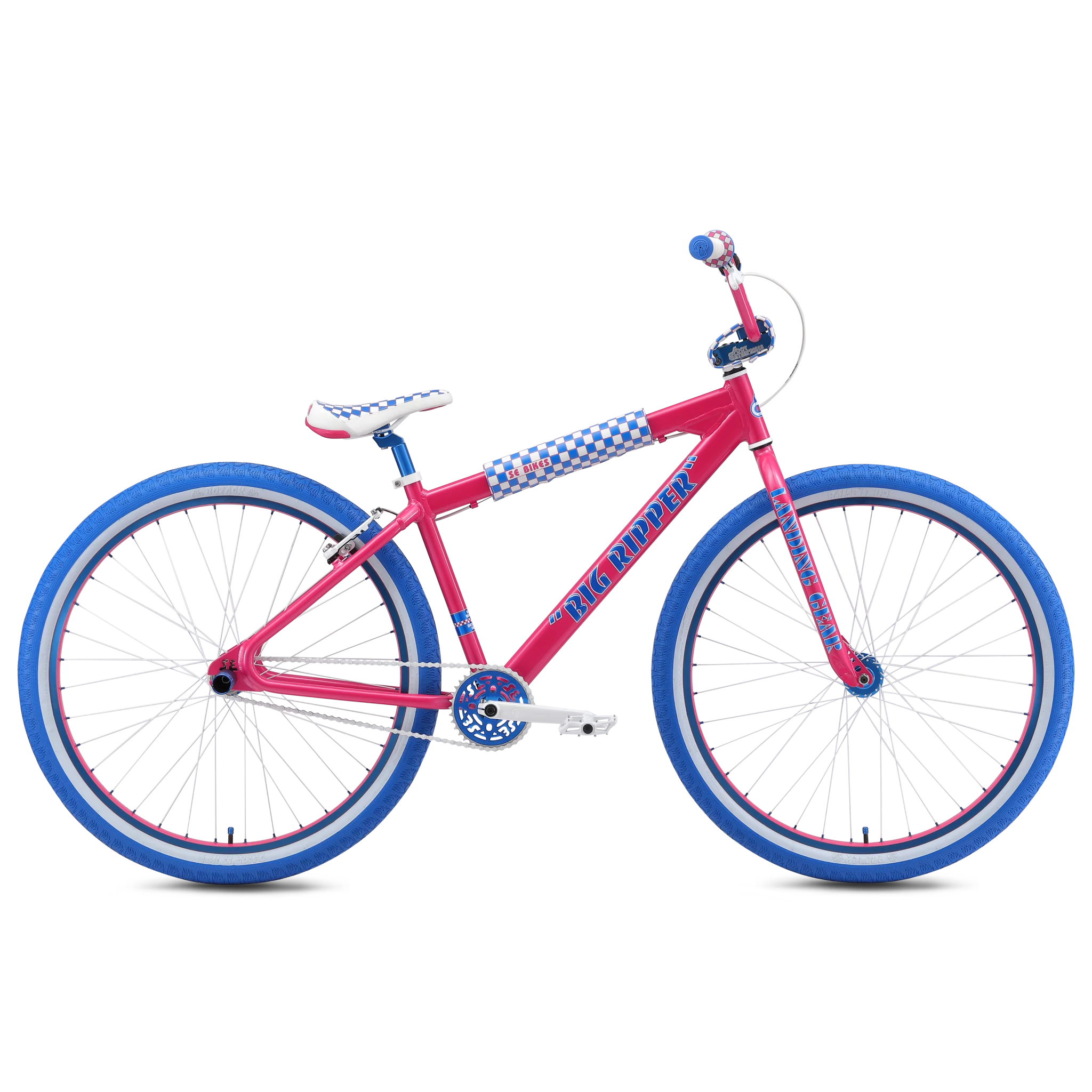

The 29" Big Ripper has a legendary history—it was the first 29" BMX bike ever produced! Its Floval tubing frame with Looptail rear end has strong ties to the original legendary PK Ripper. The special edition ODI Mushroom grips provide great feel, and the new SE Captive seat provides a secure and comfortable ride. The bike rolls like a dream with double-wall rims, sealed bearing hubs, and plenty of grip from the 29 x 2.4” SE Bozack tires. And they will definitely hear you coming this year as this bike is equipped with the new 9-pawl, 108 clicks LOUD freewheel. This is the bike that started the big BMX craze, and it’s not done yet!
ColorHot Pink
Assembly Instructions

Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.

View Assembly Video
KEY FEATURES
  • Retro 6061 aluminum Big Ripper frame with Floval tubing, looptail rear end, American bottom bracket, and classic PK Ripper style wishbone plate 
  • Full Cr-Mo Landing Gear forks 
  • Cr-Mo Big Honkin’ cruiser bars 
  • Double-wall rims with sealed-bearing and high-flange hubs 
  • NEW 9-pawl, 108 clicks LOUD freewheel
  • NEW SE Captive Seat with concave design for ultimate hold & comfort
  • SE 3-piece V-Ridge cranks with alloy SE sprocket 
  • Authentic ODI Mushroom II grips 
  • SE Bozack 29 x 2.4” tires 
  • SE padset
  • SE Wheelie Pegs 
SPECIFICATIONS
Frame 6061 Aluminum Floval Tubing, Looptail Rear End, 68mm American Bottom Bracket, Wide Rear Stays, Retro Dropouts
Fork Landing Gear, Full Cr-Mo
Crankset SE V-Ridge 3-pc Cr-Mo Cranks, 170mm, Sealed American Bottom Bracket, 160mm Spindle Length, 19mm Spindle Diameter, 36T Alloy SE Racing Sprocket
Pedals X-Pedo Low-profile Platform w/ Removable Pins
Chain KMC S1
Wheelset Sealed Bearing 36H High-Flange Alloy Flip Flop Hubs, Double-wall Rims w/ Eyelets & CNC Sidewalls, 17T 9-Pawl, 108 Clicks LOUD Freewheel, Stainless Spokes
Tires SE Bozack, Street Proven Multi-Purpose Compound, Wrap Around Urban Tread Pattern, Grooved SE Wing Logo, 29" x 2.4" Front & Rear

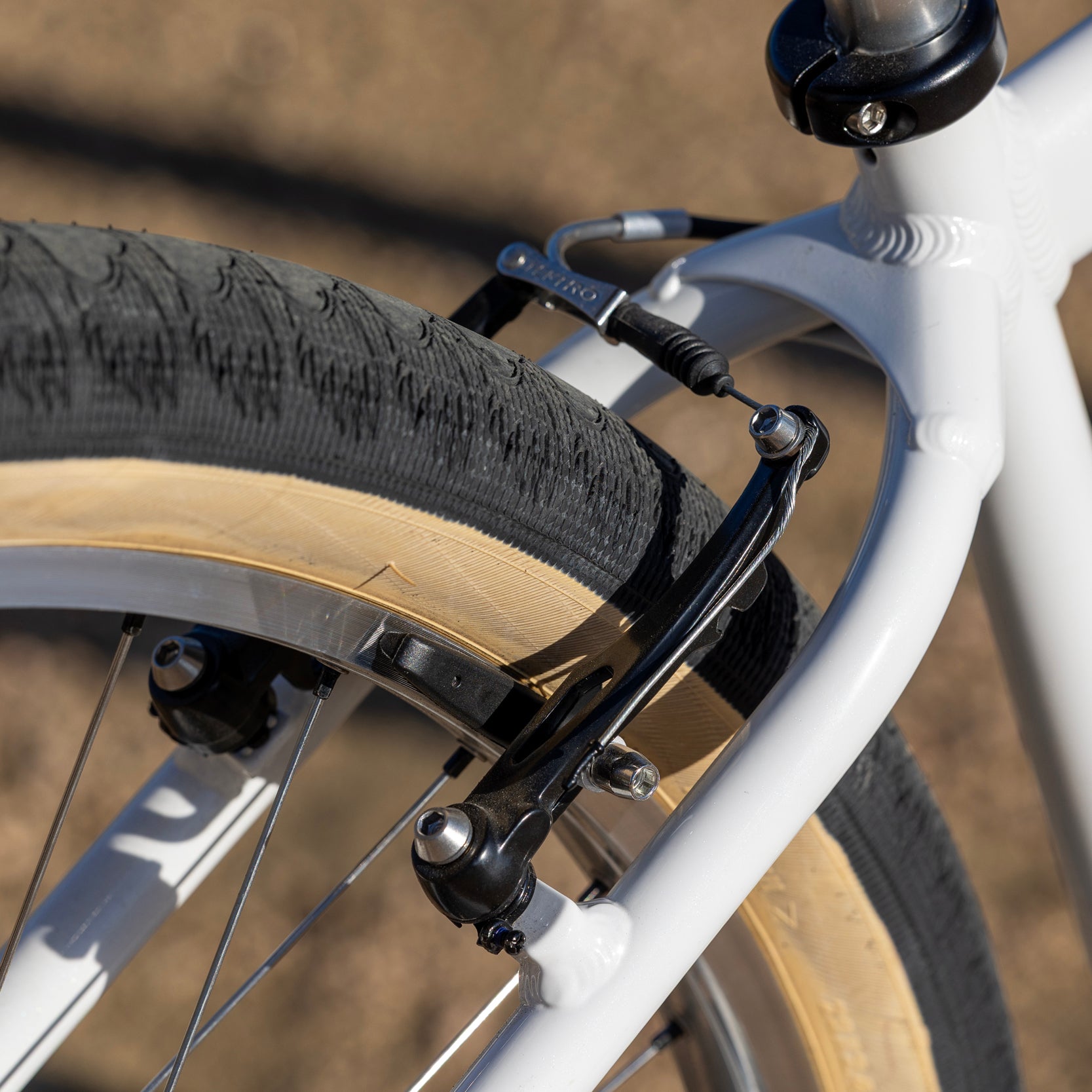

Brakeset Tektro 855AL V-Brake, Slick Cable

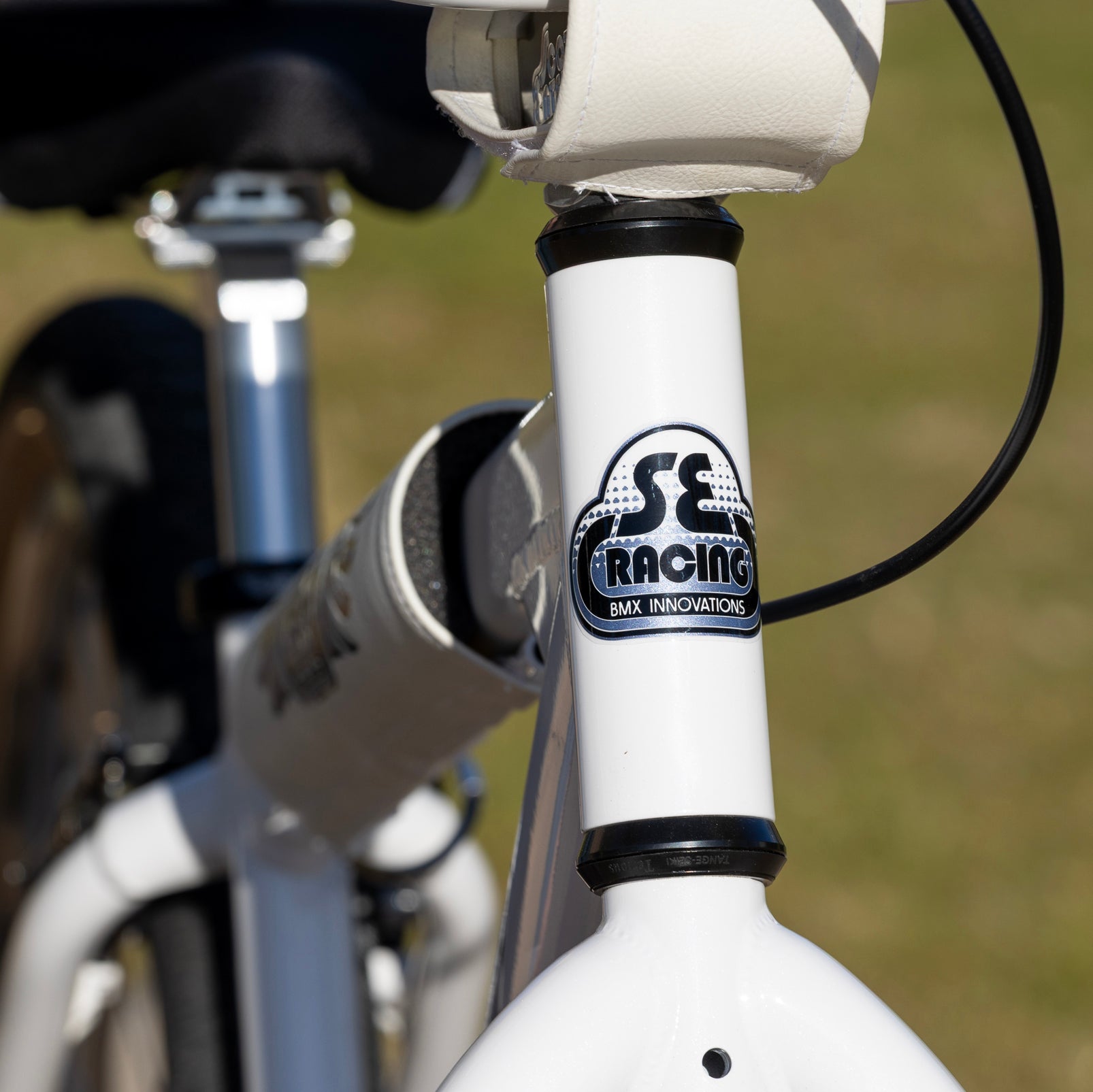

Headset Tange 1-1/8" Threadless
Handlebar Big Honkin' Cr-Mo Cruiser Bar, 29" x 7", 12° Backsweep, 2° Upsweep

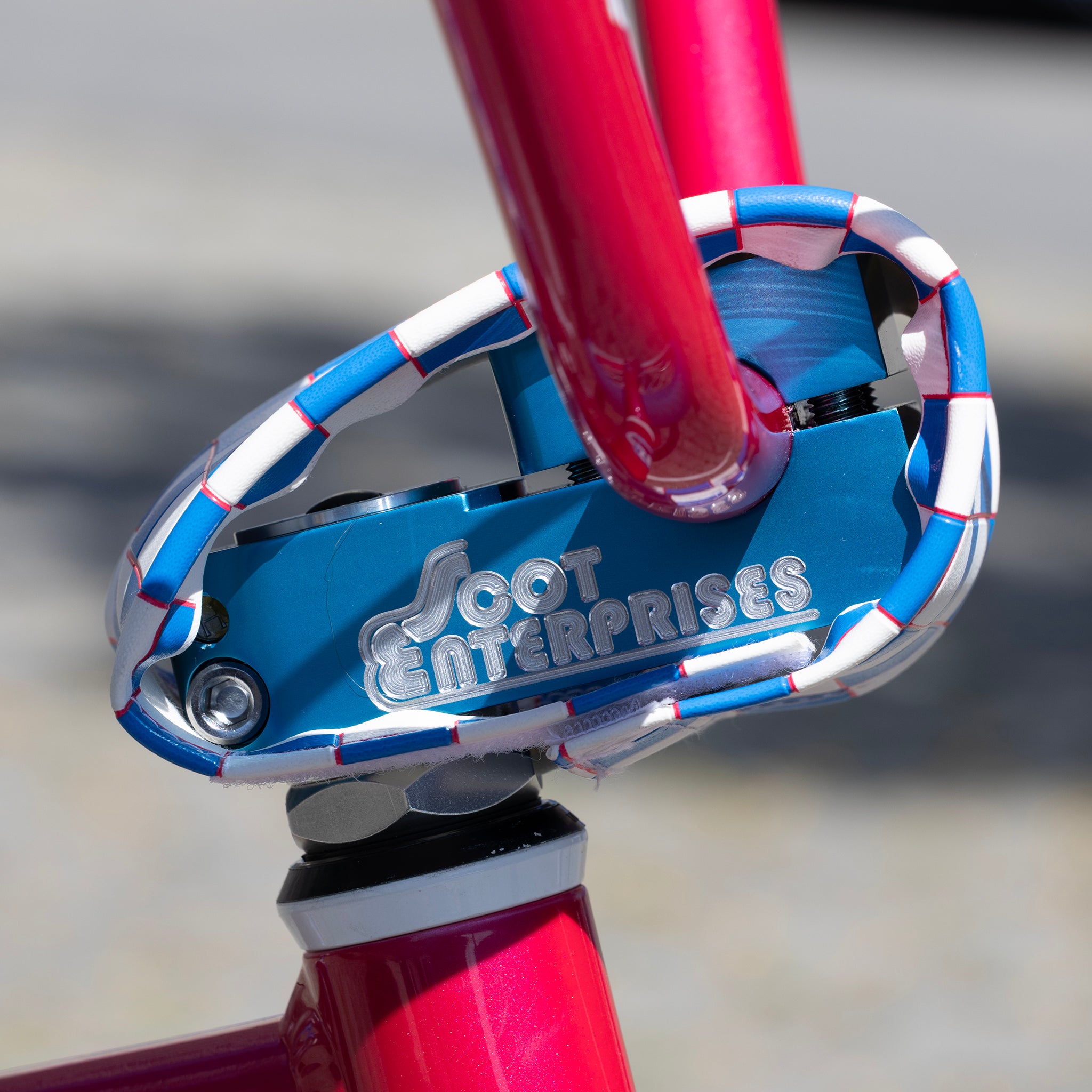

Stem Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach

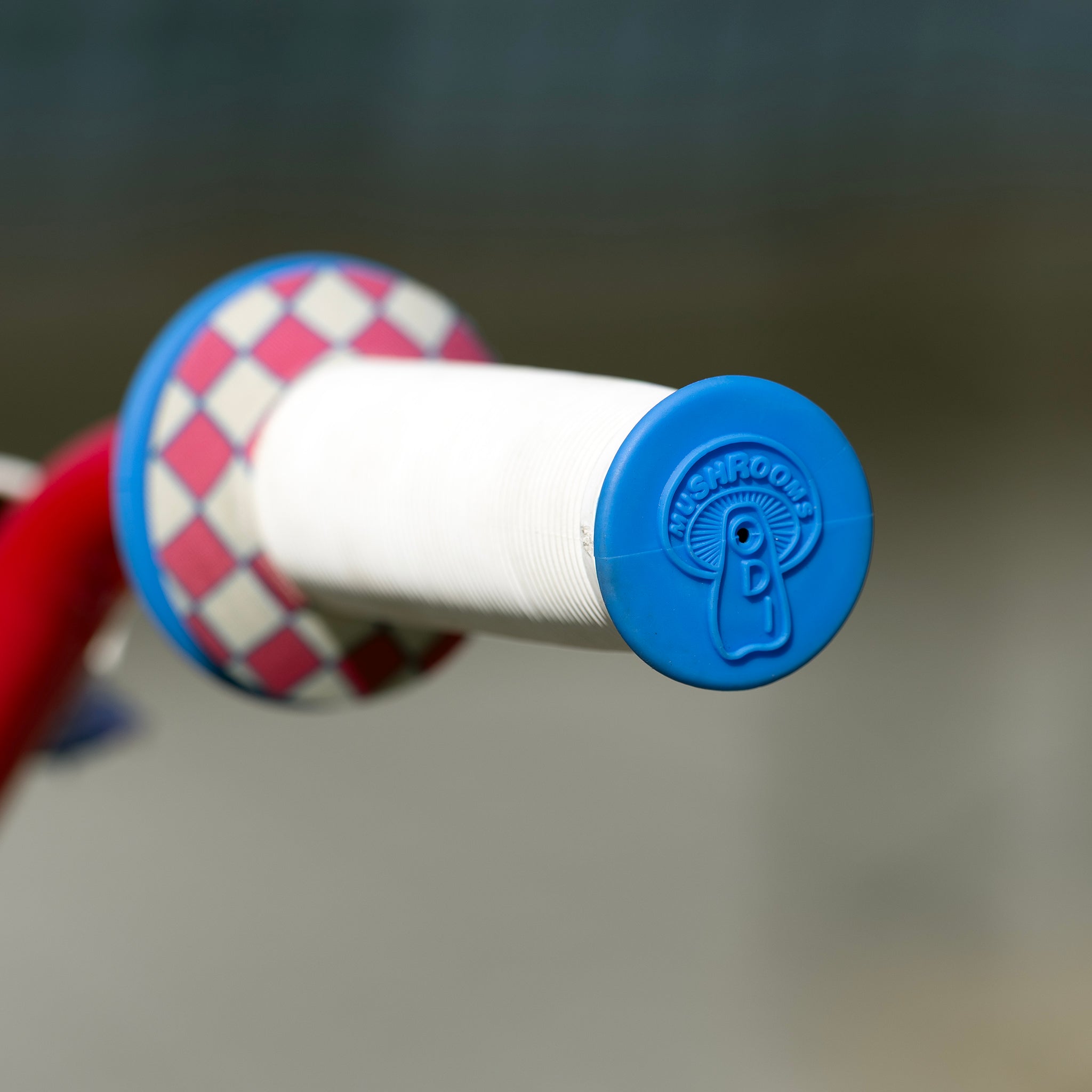

Grips Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA
Seat New SE Captive Seat, Concave Design for Ultimate Hold & Comfort, w/ Custom SE Bottle Opener Brace
Seatpost Micro-Adjust Alloy, 27.2mm

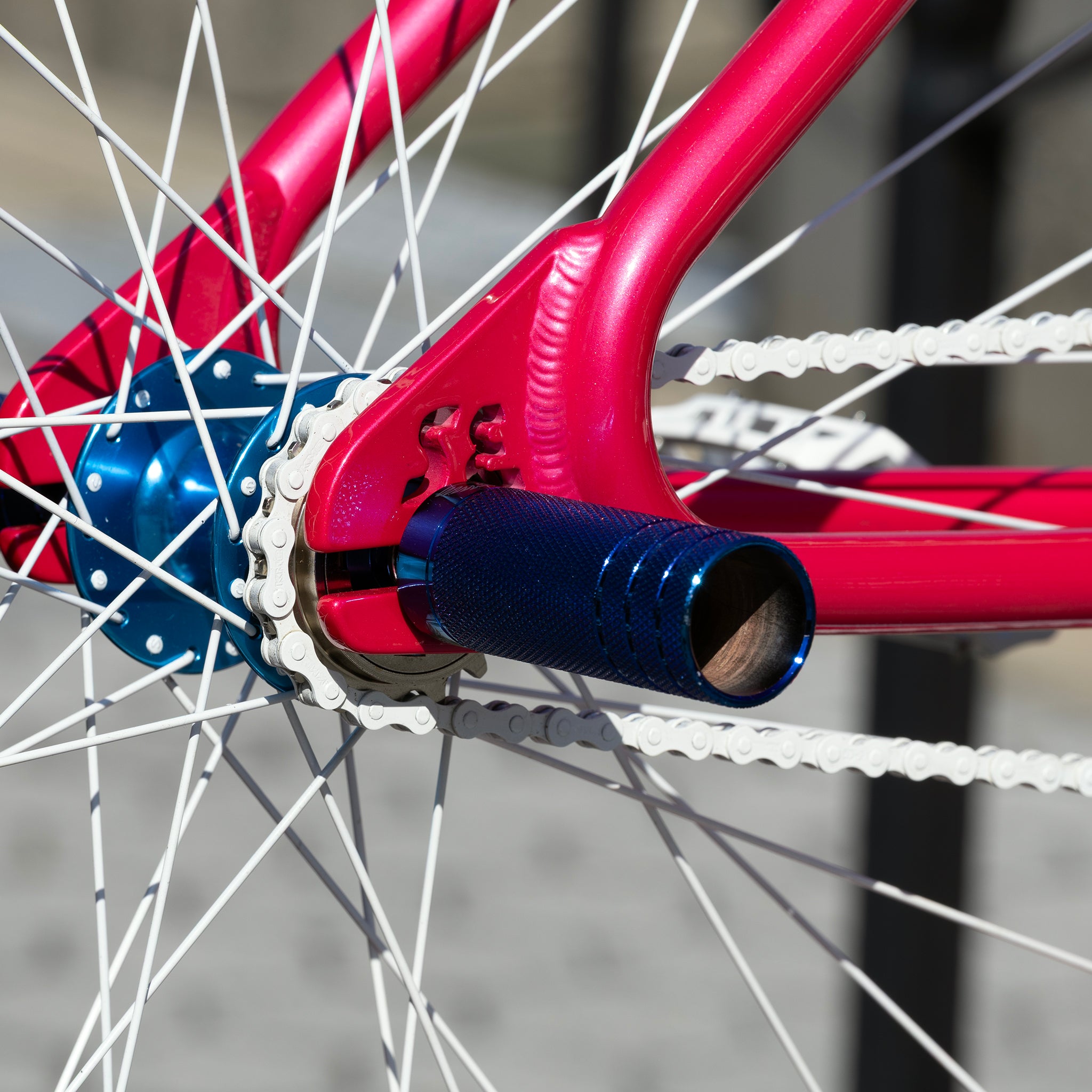

Accessories SE Racing Padset, Custom Donuts, Alloy Valve Caps, SE Wheelie Pegs

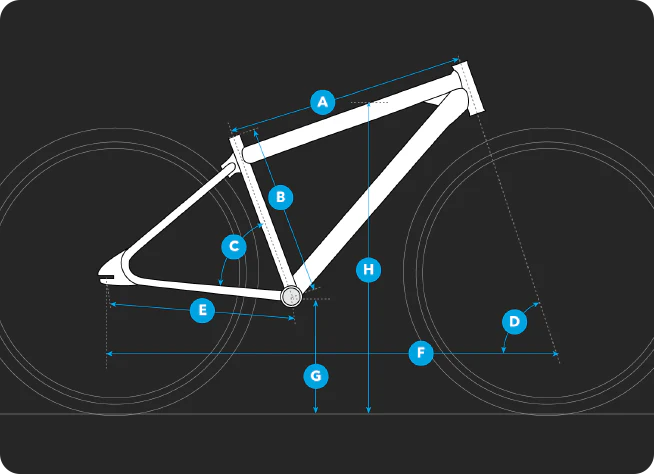

GEOMETRY
A Top Tube, Actual 23.6"
B Seat Tube, Center To Top 16.9"
C Seat Tube Angle 71°
D Head Tube Angle 71°
E Chainstay Length 18.25"
F Wheelbase 44"
G Bottom Bracket Height 12.25"
H Standover 30.75"
Suggested Rider Size 5'5"+ (165cm+)
Stem 55mm
Handlebar Width 29"
Crank 170mm
Wheel Size 29"
Seat Post Diameter 27.2mm
Geometry diagram
