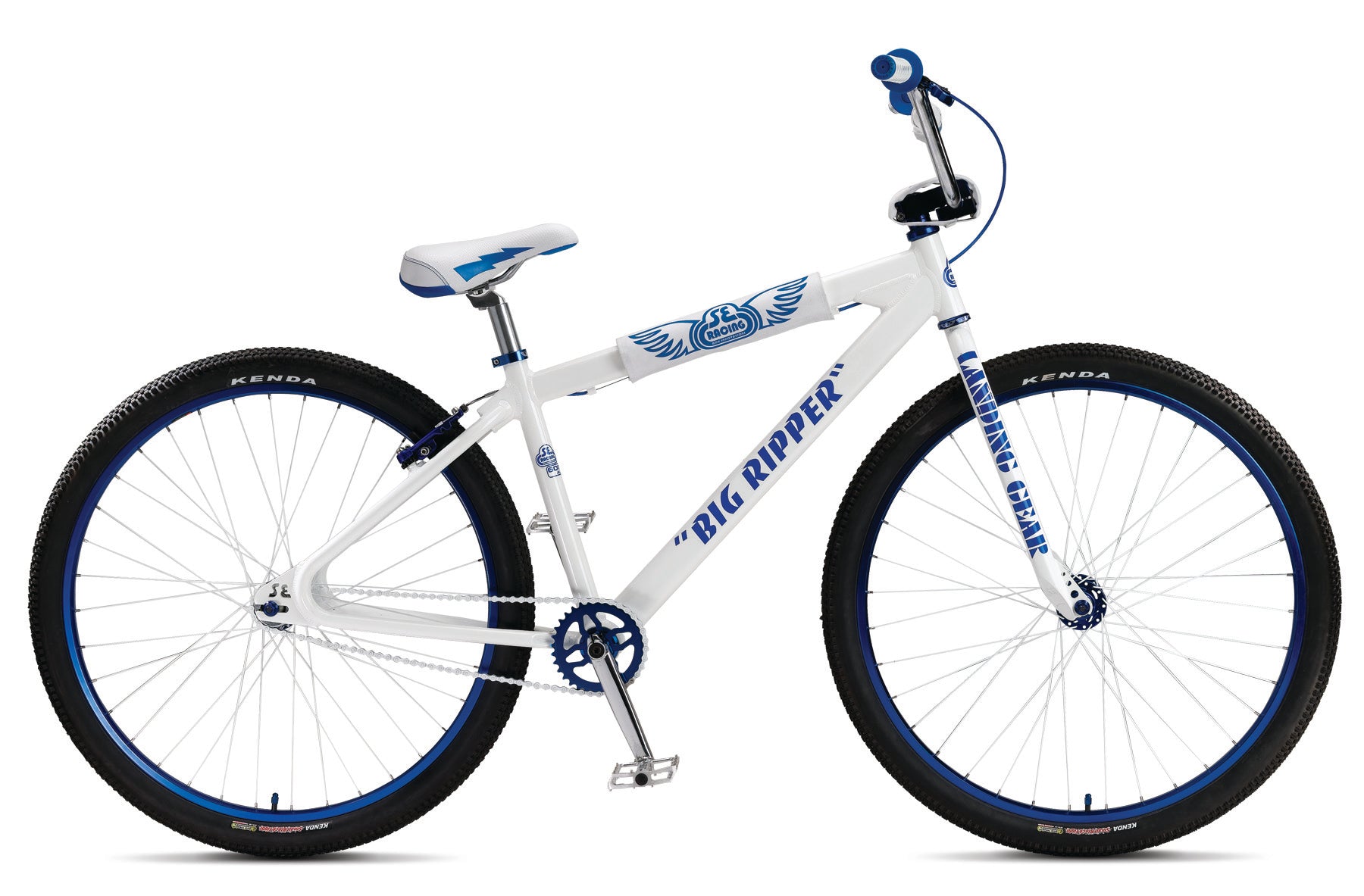

Big Ripper 29" (2010)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Looptail Rear End, Retro Dropouts |
| Fork | 100% CR-MO Landing Gear |
| Crankset | SE 3-pc CR-MO, 175mm, Sealed American BB, 33T Alloy |
| Pedals | Wellgo Low Profile Alloy Platform w/ CR-MO Axle |
| Chain | KMC Z410 Silver |
| Wheelset | Alex DM18 Double Wall 36H Alloy w/ 14 Spokes; SE Racing, High Flange, Cartridge Sealed Bearing 36H Alloy Front; SE Racing, High Flange, Cartridge Sealed Bearing 36H Alloy, Flip-Flop Threads w/ 16T Freewheel Rear Hub |
| Tires | Freedom Cruz Sport, 2.1" F&R |
| Brakeset | Tektro 837AL V-Brake |
| Brake Levers | Tektro 313A, 2 Finger Alloy |
| Headset | Tange Alloy DX4, 1-1/8" Threadless |
| Handlebar | Power Wing Cruiser Bar, 28" X 7" |
| Stem | Retro Top Load 1-1/8" Alloy |
| Grips | S-1E Retro Grip |
| Seat | SE Flyer Seat |
| Seatpost | Race Rocker Micro-Adjust Aluminum 30.8mm |
| Accessories | Alloy Valve Caps, Retro Pads, Touch Up Paint |
| Weight | 27.9 lbs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 24" |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 71° |
| E | Chainstay Length | 18" |
| G | Bottom Bracket Height | 12" |
| Wheel Size | 29" |
