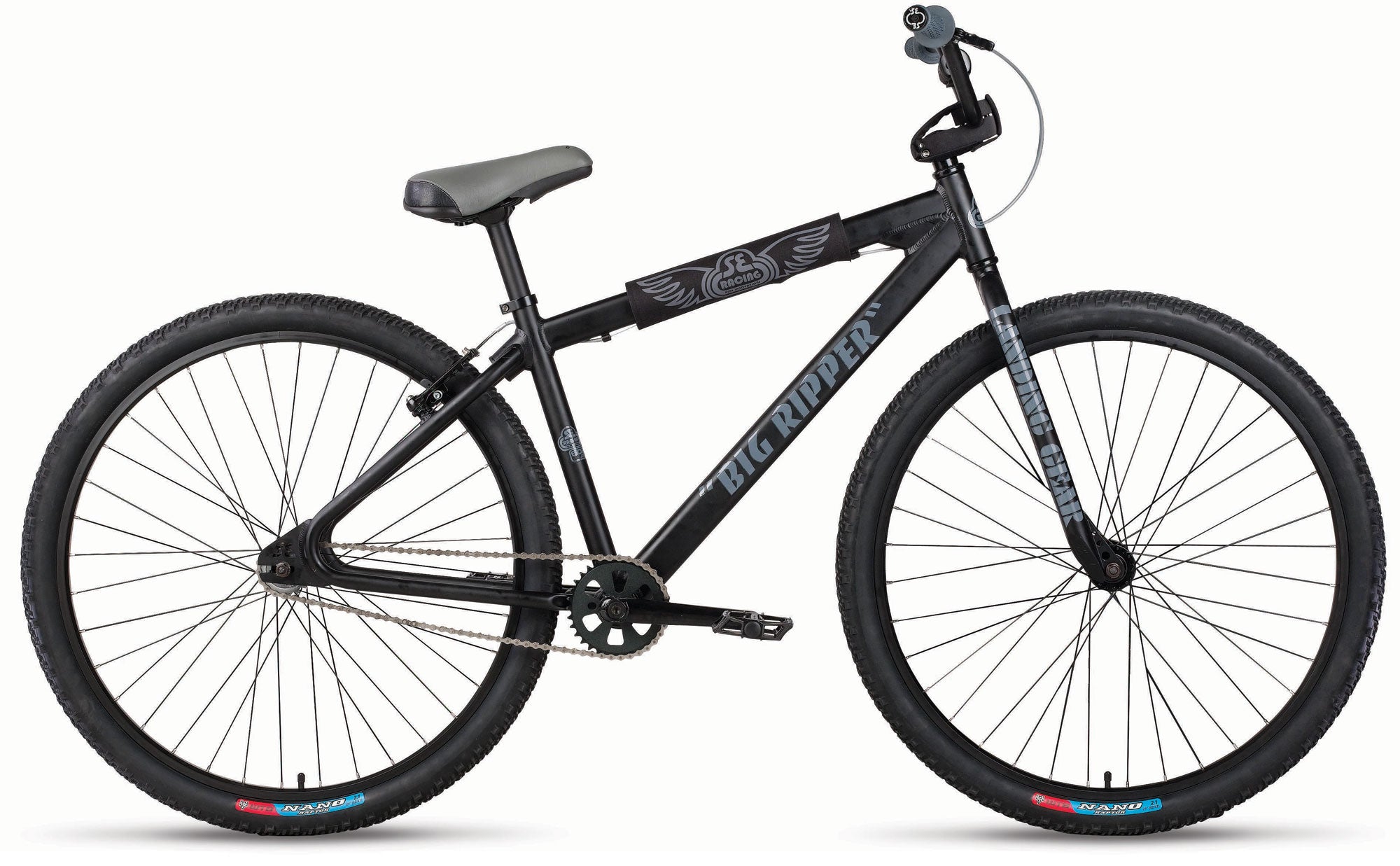

Big Ripper 29" (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Looptail Rear End, Retro dropouts |
| Fork | 100% CR-MO Landing Gear |
| Crankset | SE 3-pc CR-MO, 180mm, Sealed American BB, 33T Alloy |
| Pedals | Wellgo Alloy Platform w/ CR-MO Axle |
| Chain | KMC Z410 Silver |
| Wheelset | Weinmann ZAC 24000 36H Aluminum, Stainless Spokes; SE Racing, High Flange, Cartridge Sealed Bearing 36H Alloy Front Hub; SE Racing, High Flange, Cartridge Sealed Bearing 36H Alloy, Flip-Flop Threads w/ 16T Freewheel Rear Hub |
| Tires | WTB Nanoraptor, 2.1" F&R |
| Brakeset | Tektro 837AL V-Brake |
| Brake Levers | Tektro 313A, 2 Finger Alloy |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | CR-MO SE Racing Wing Bar, 27.25" X 5.75" |
| Stem | Retro Top Load 1-1/8" |
| Grips | SE Racing Wing Grip |
| Seat | SE Flyer Seat |
| Seatpost | Race Rocker Micro-Adjust Aluminum 30.8 |
| Accessories | Grip Donuts, Alloy Valve Caps, Retro Pads, Alloy SE End Caps |
| Wheel Size | 29" |
Specifications subject to change without notice.
GEOMETRY
| Sizes | (S)15", (S/M)17", (M)19", (M/L)21" | |
| D | Head Tube Angle | 71° |
| C | Seat Tube Angle | 73° |
| Seat Tube, Center to Top | 381, 432, 483, 533 | |
| A | Top Tube Length | 23.25" |
| A | Top Tube, Effective | 565, 580, 600, 620 |
| E | Chainstay Length | 17.75" |
| G | Bottom Bracket Height | 12" |
| Head Tube | 115, 130, 130, 140 | |
| Seat Tube Angle | 73.5° | |
| Head Tube Angle | 70° | |
| Chainstay | 430 | |
| Wheelbase | 1062, 1077, 1098, 1119 | |
| Fork Offset | 42 | |
| Bottom Bracket Drop | 45" | |
| Wheel Size | 29" |
