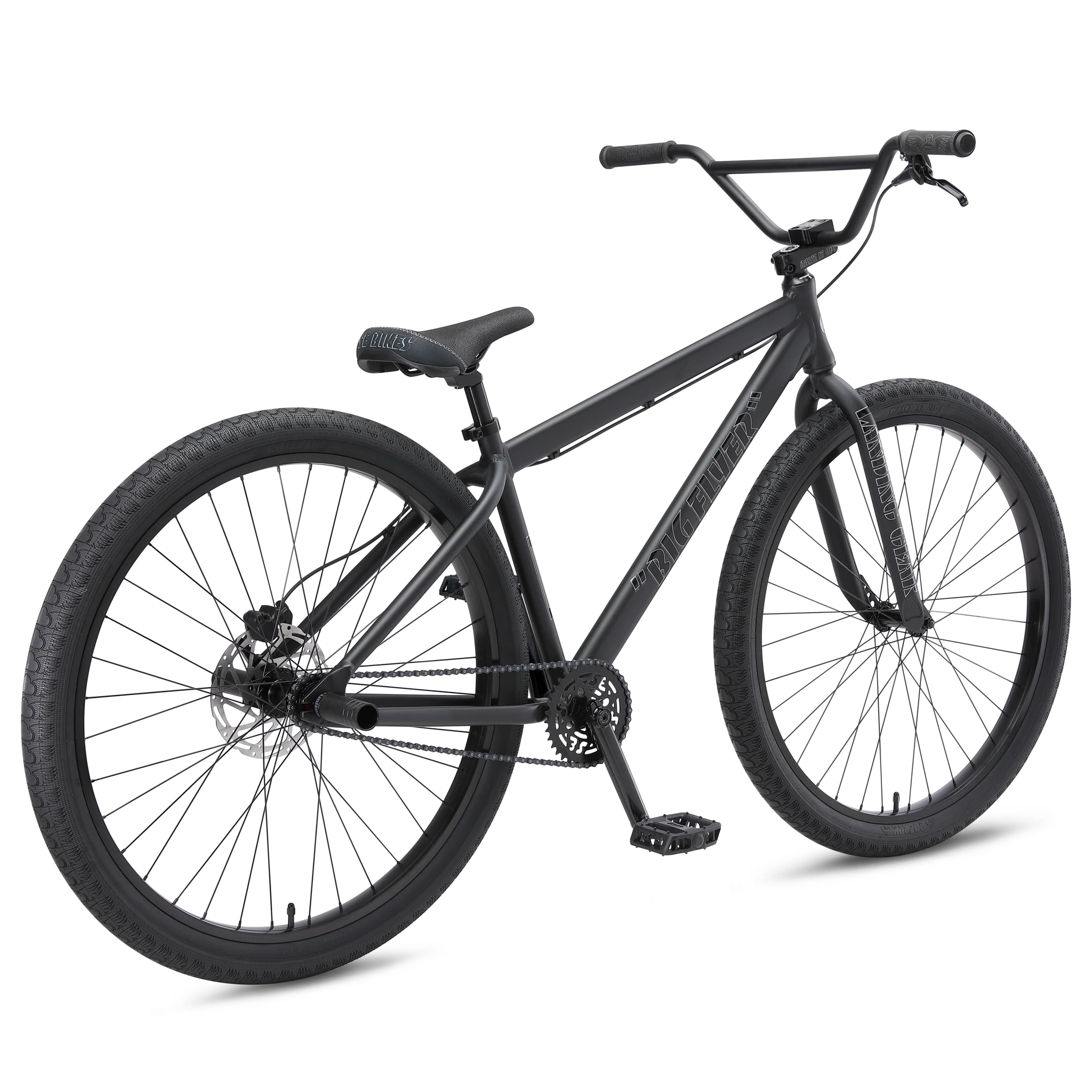

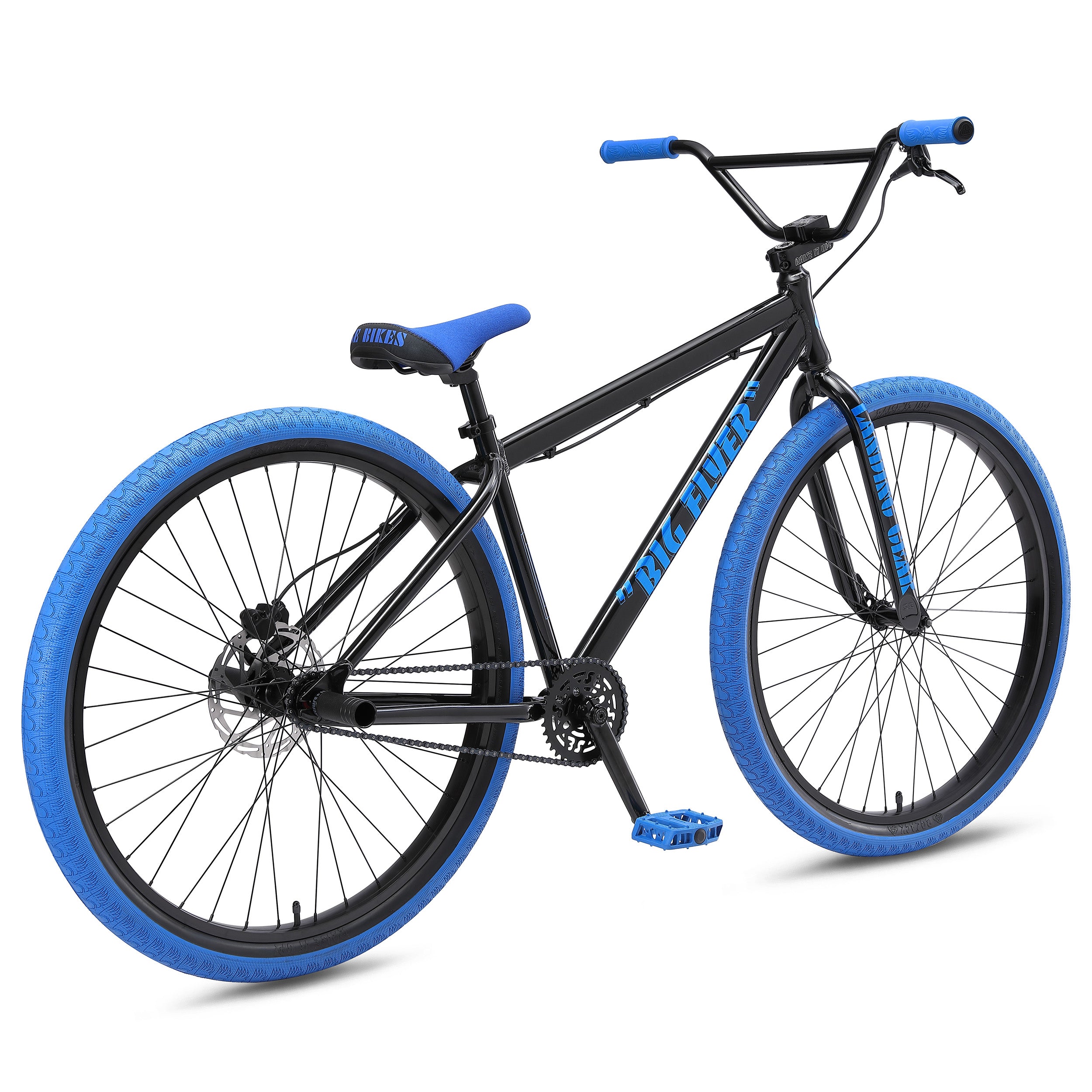

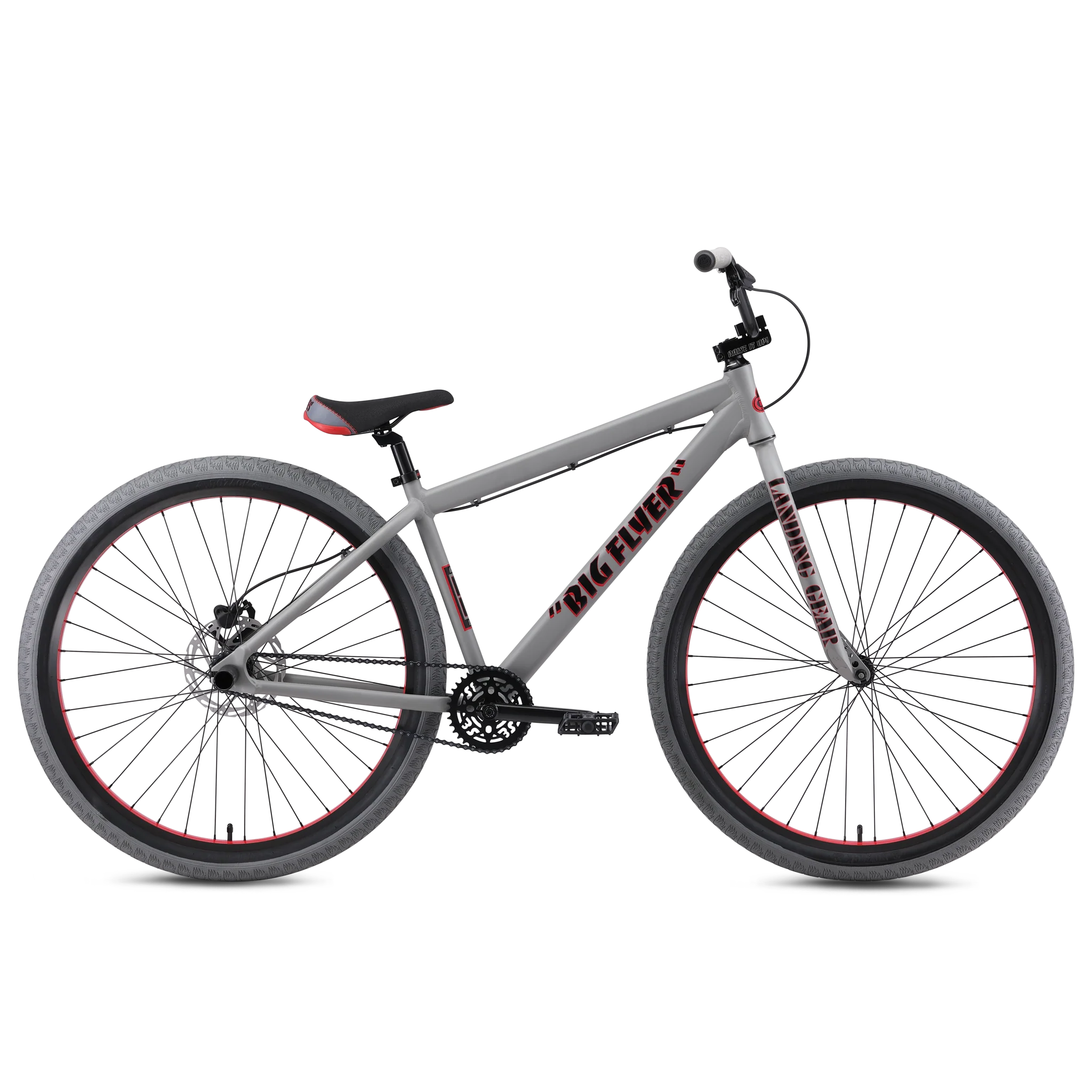

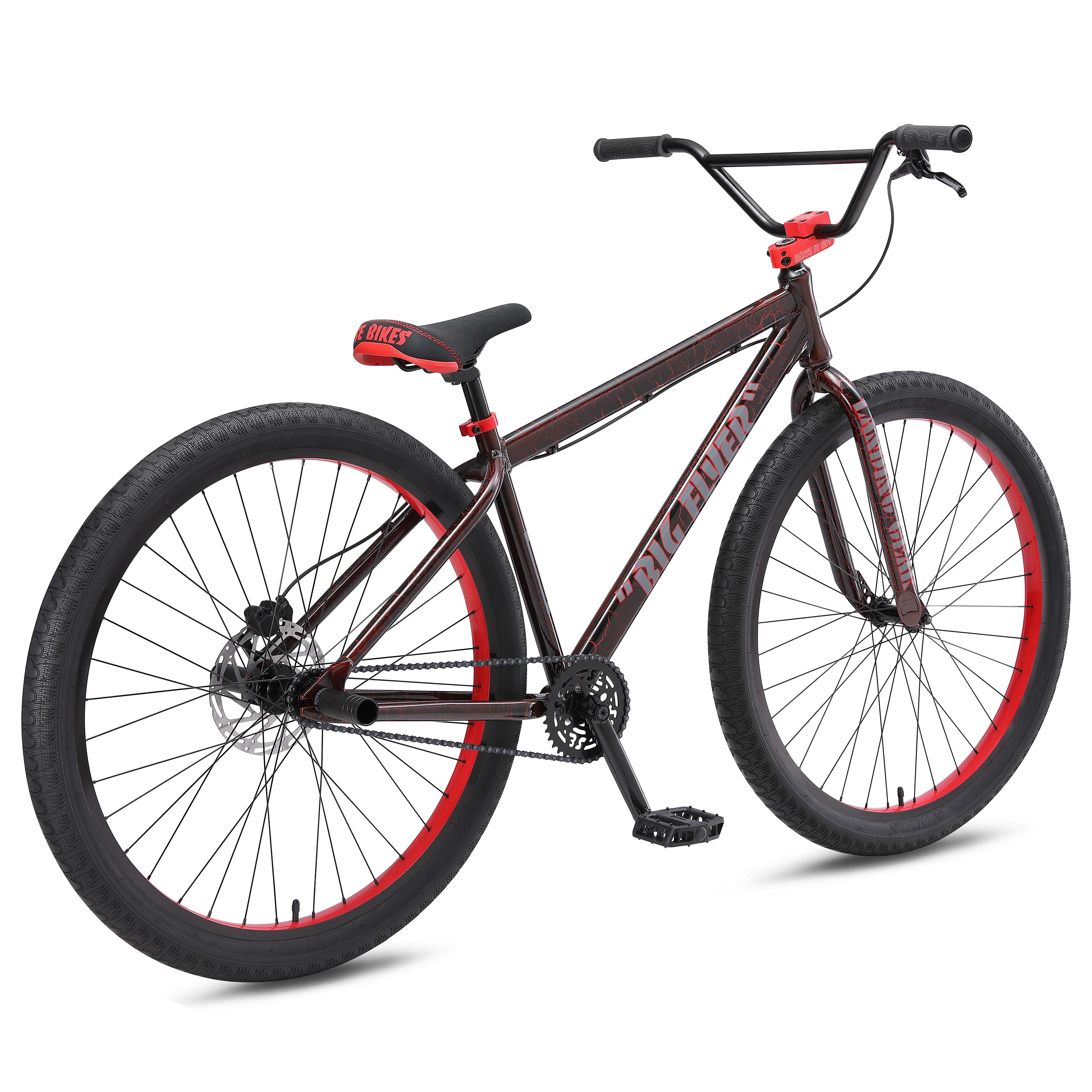

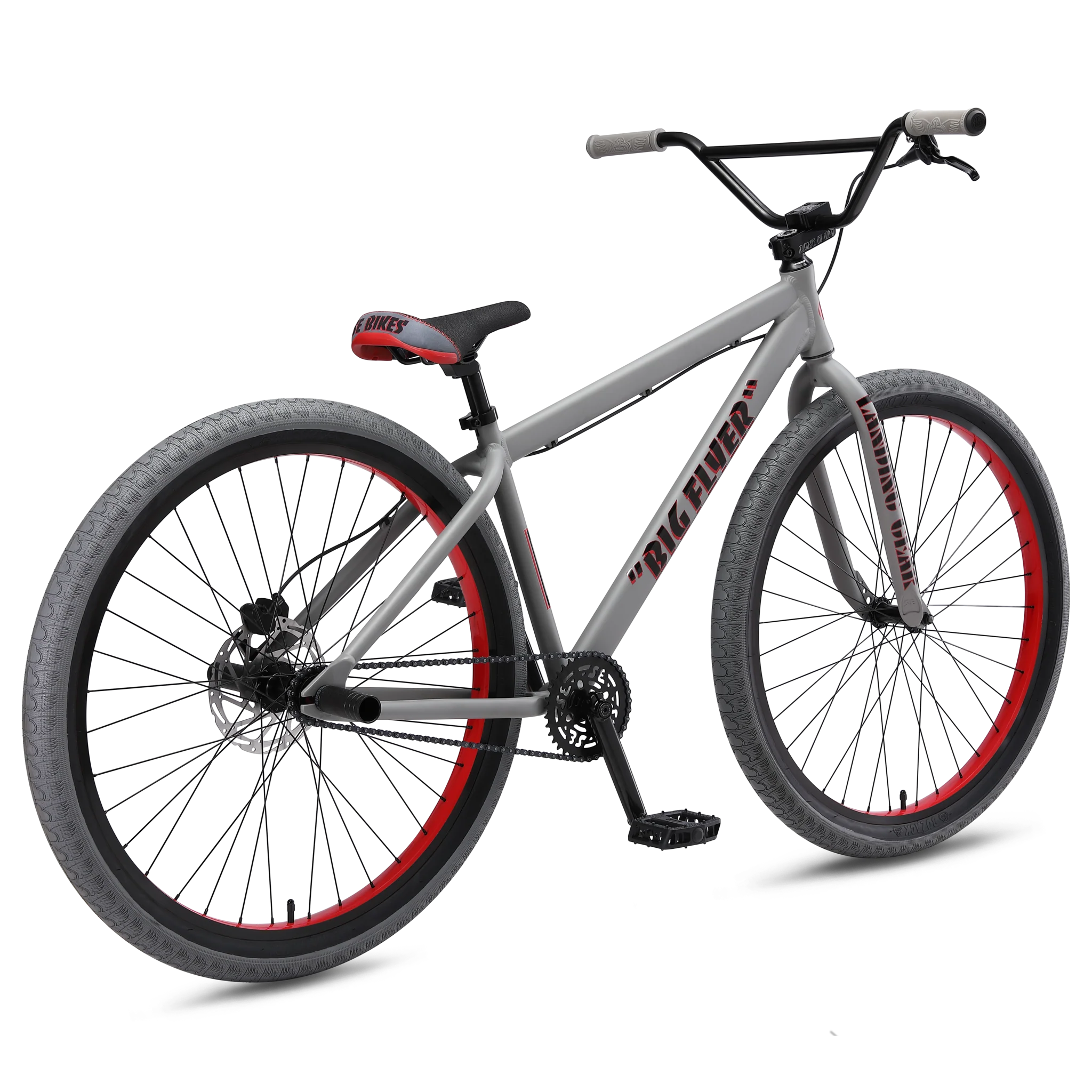

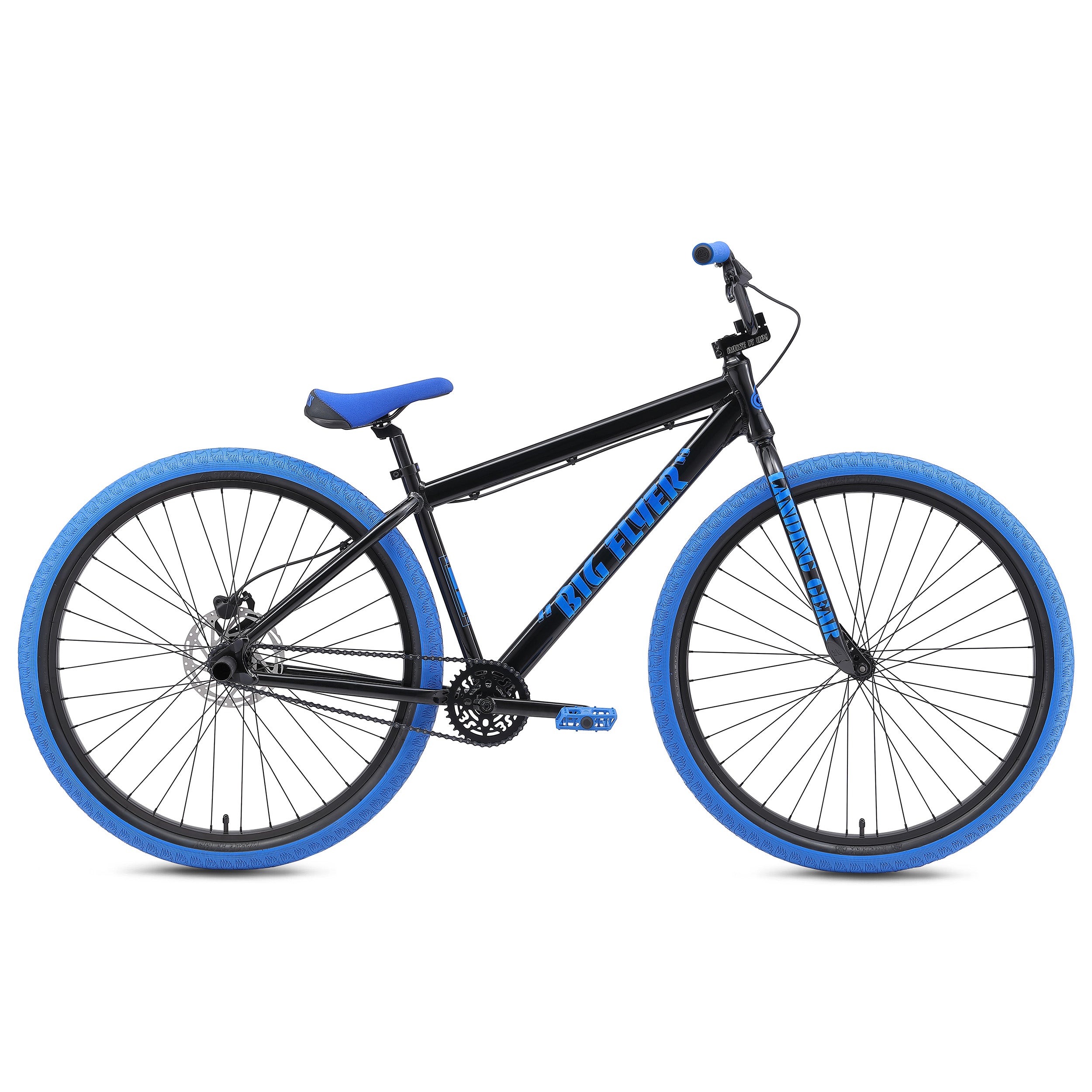

Big Flyer HD 29"
Big Flyer HD 29"
Big Flyer HD 29"

Big Flyer HD 29"

$899.99
Description

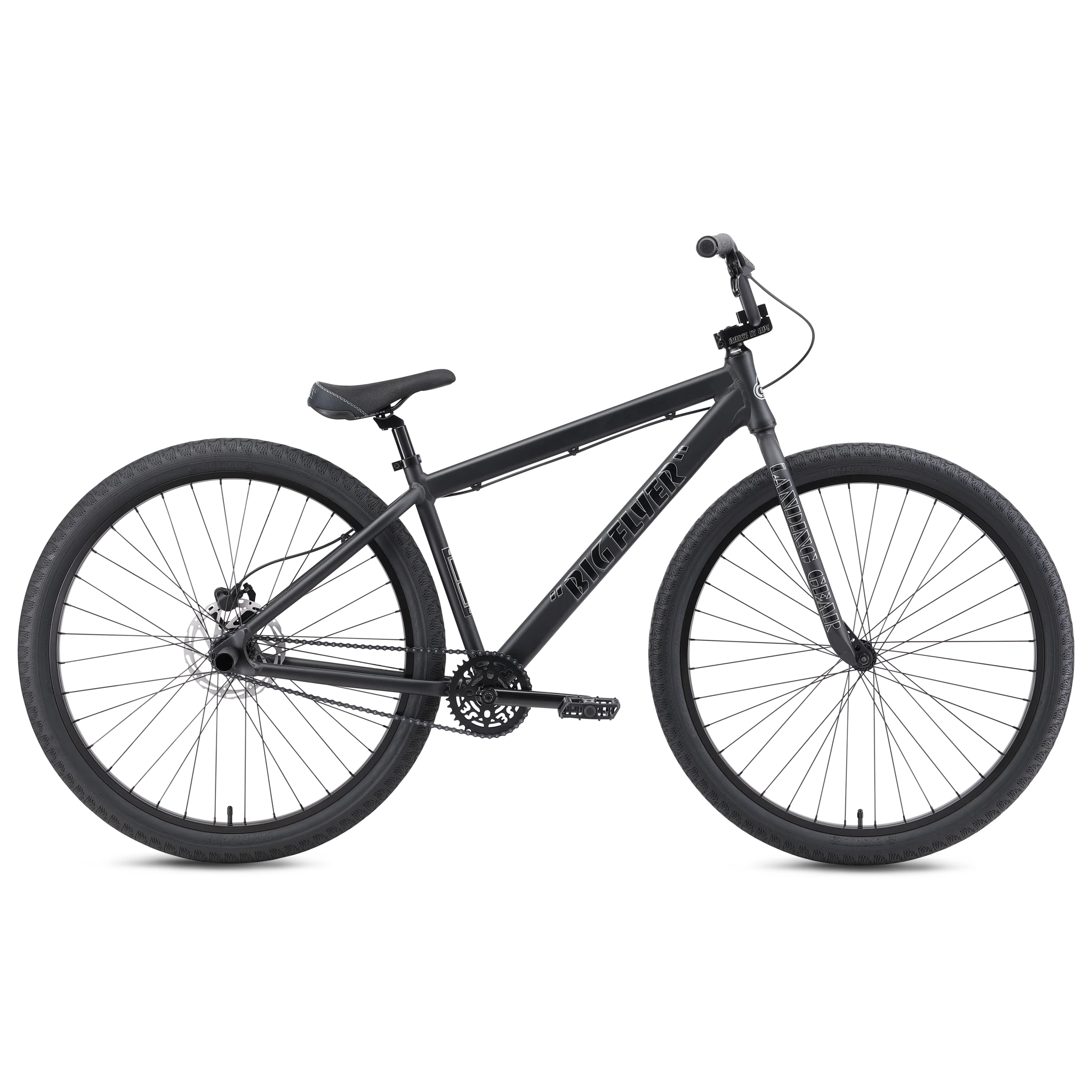

This is not your average bike. This is the 29" Big Flyer HD wheelie machine. Its 6061 aluminum Floval tubing frame and Cr-Mo Landing Gear forks are ready to take on the streets, while the SE 3-pc Cr-Mo cranks deliver the power you need. The new SE Captive seat provides ultimate hold and comfort while raising it up or just cruising along. You’ll be sure to stop on a dime with the new Tektro hydraulic disc brake, featuring a two-piston open system and a 180mm rotor for ultimate stopping power. Rolling on 29 x 2.4” Bozack tires, the Big Flyer HD grips the pavement and doesn't let go. 

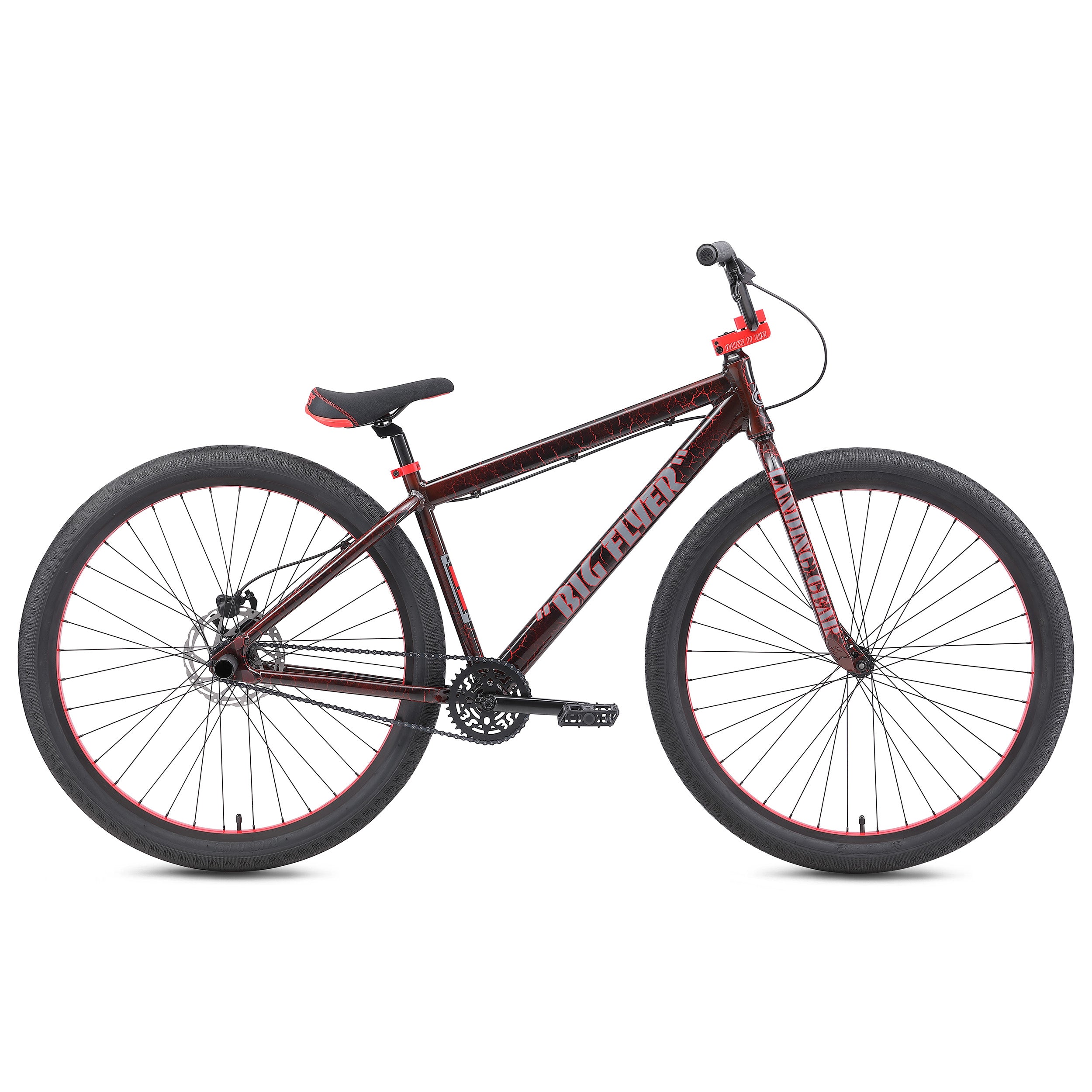

ColorRed Crackle
Assembly Instructions

Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.

View Assembly Video
KEY FEATURES

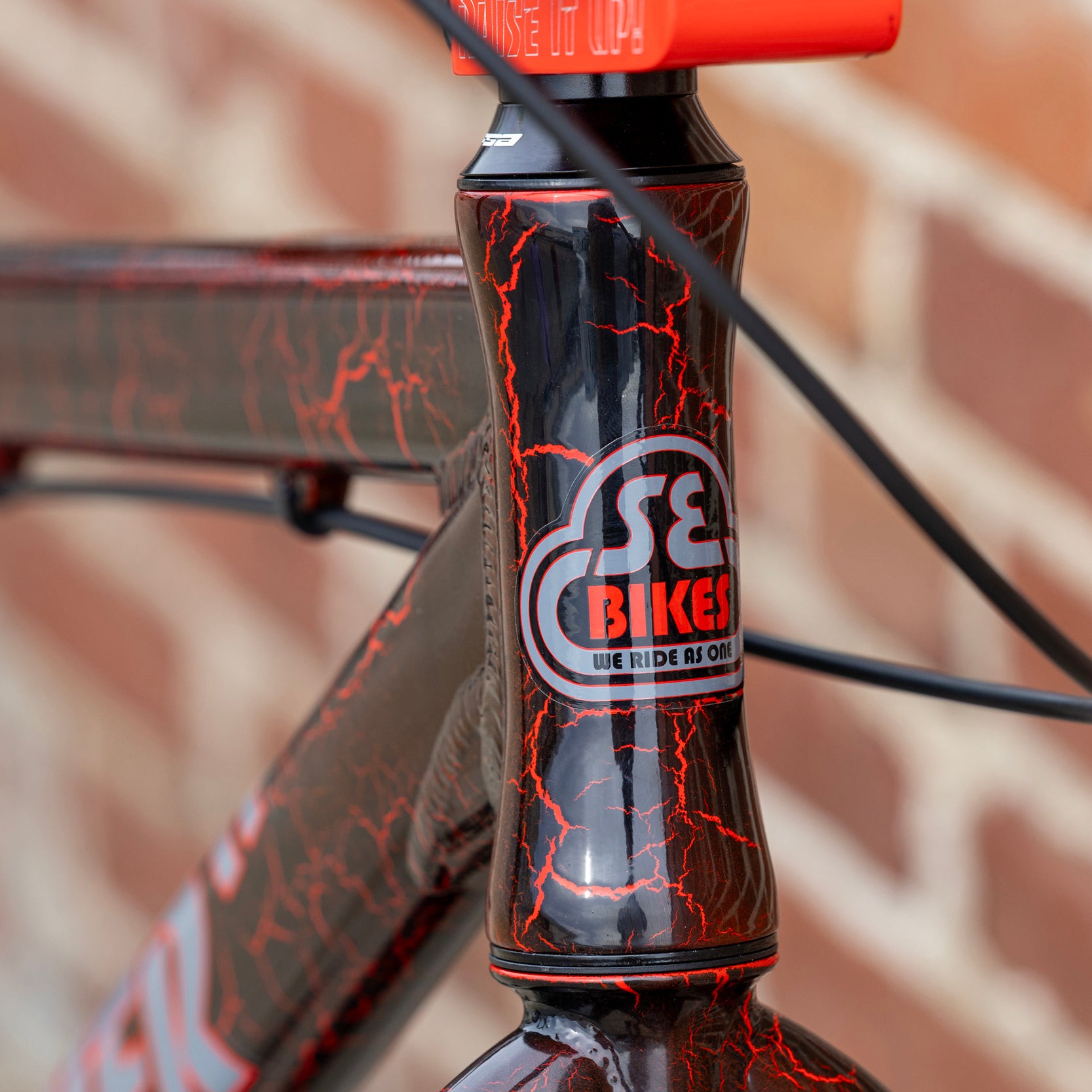

  • Lightweight 6061 aluminum Floval tubing frame with internal headset, mid bottom bracket, SE Wave dropouts with disc brake tabs 
  • Cr-Mo Landing Gear forks
  • NEW Tektro HD-M281 hydraulic disc brakes 
  • NEW SE Captive Seat with concave design for ultimate hold & comfort
  • Double-wall rims with 135mm sealed bearing rear disc hub 
  • SE Bozack 29” x 2.4” tires 
  • FSA internal headset 
  • 3-piece tubular cranks with custom SE Racing sprocket 
  • SE nylon fiber pedals 

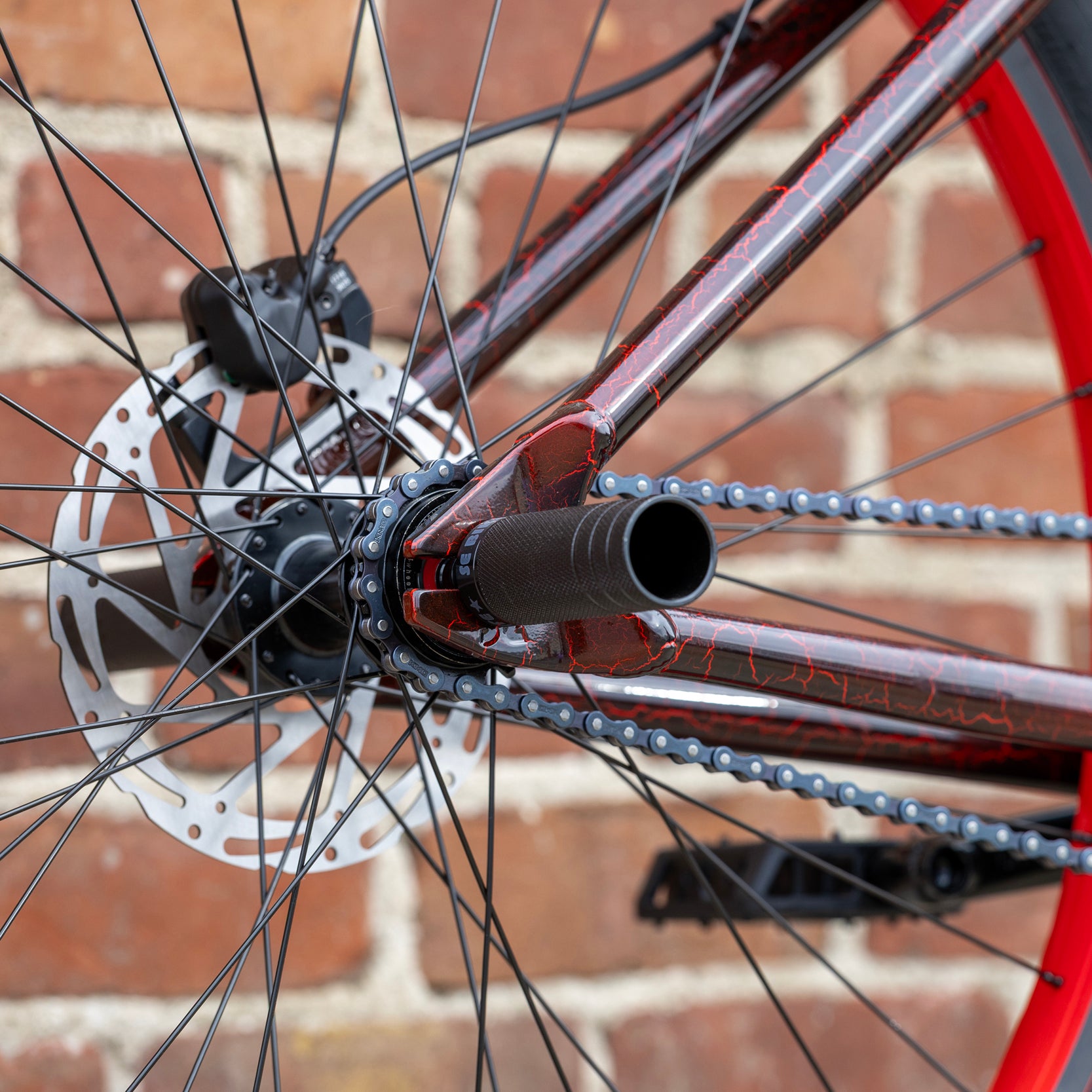

  • SE Wheelie Pegs and alloy valve caps included 
SPECIFICATIONS

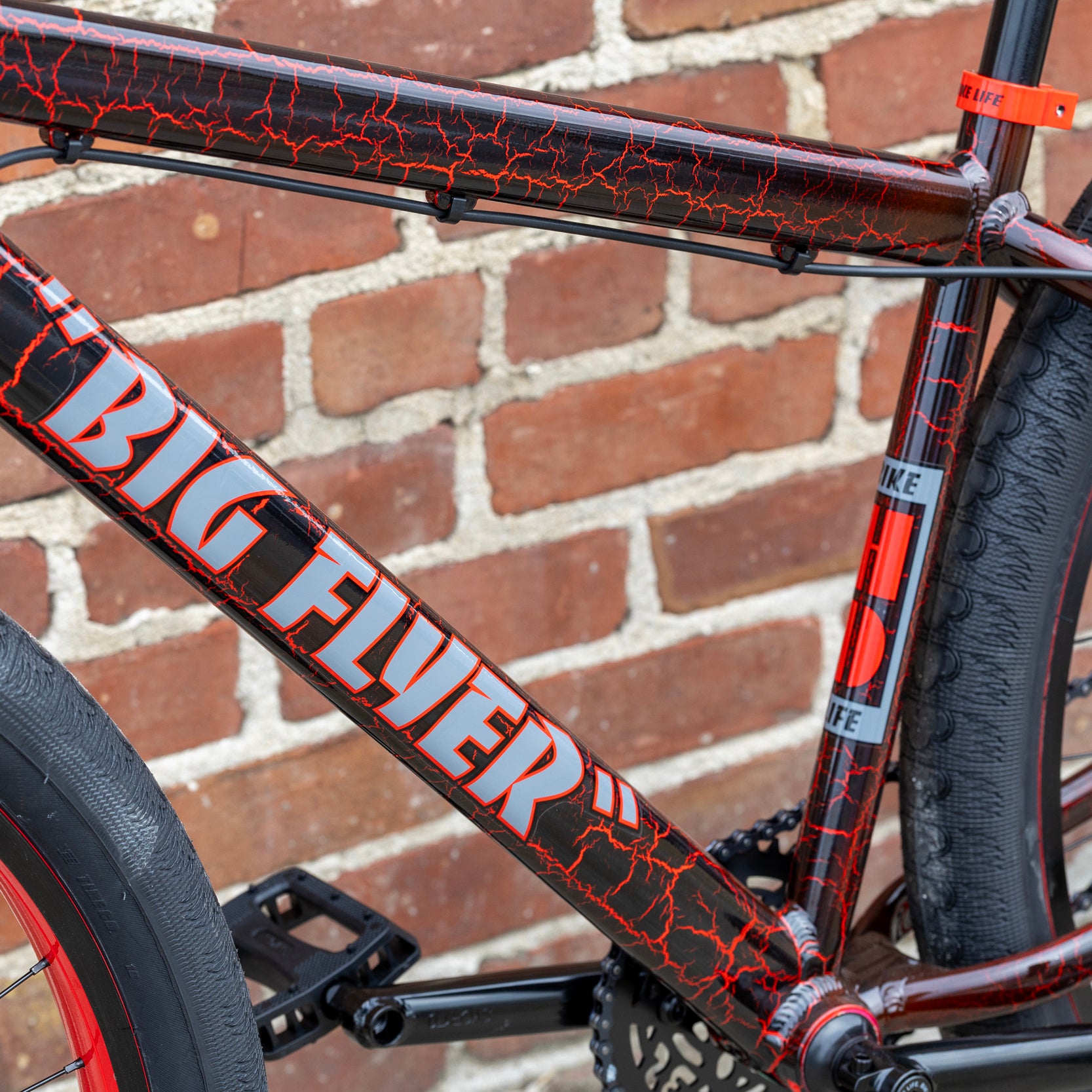

Frame 6061 Aluminum Floval Tubing, Internal Head Tube, 68mm Wide Mid Bottom Bracket, Wide Rear Stays, Disc Brake Tabs, 135mm Spaced SE Wave Dropouts
Fork Landing Gear, Cr-Mo
Crankset SE 3-pc Cr-Mo, 170mm, Sealed Bearing Mid Bottom Bracket, 150mm Spindle Length, 19mm Spindle Diameter, 36T SE Sprocket
Pedals SE Nylon Fiber Platform
Chain KMC S1
Wheelset SE Racing Alloy 36H, 135mm Sealed Rear Disc Hub, 100mm Front Hub, Rear Hub, Double-wall Rims, 17T Freewheel, Stainless Spokes

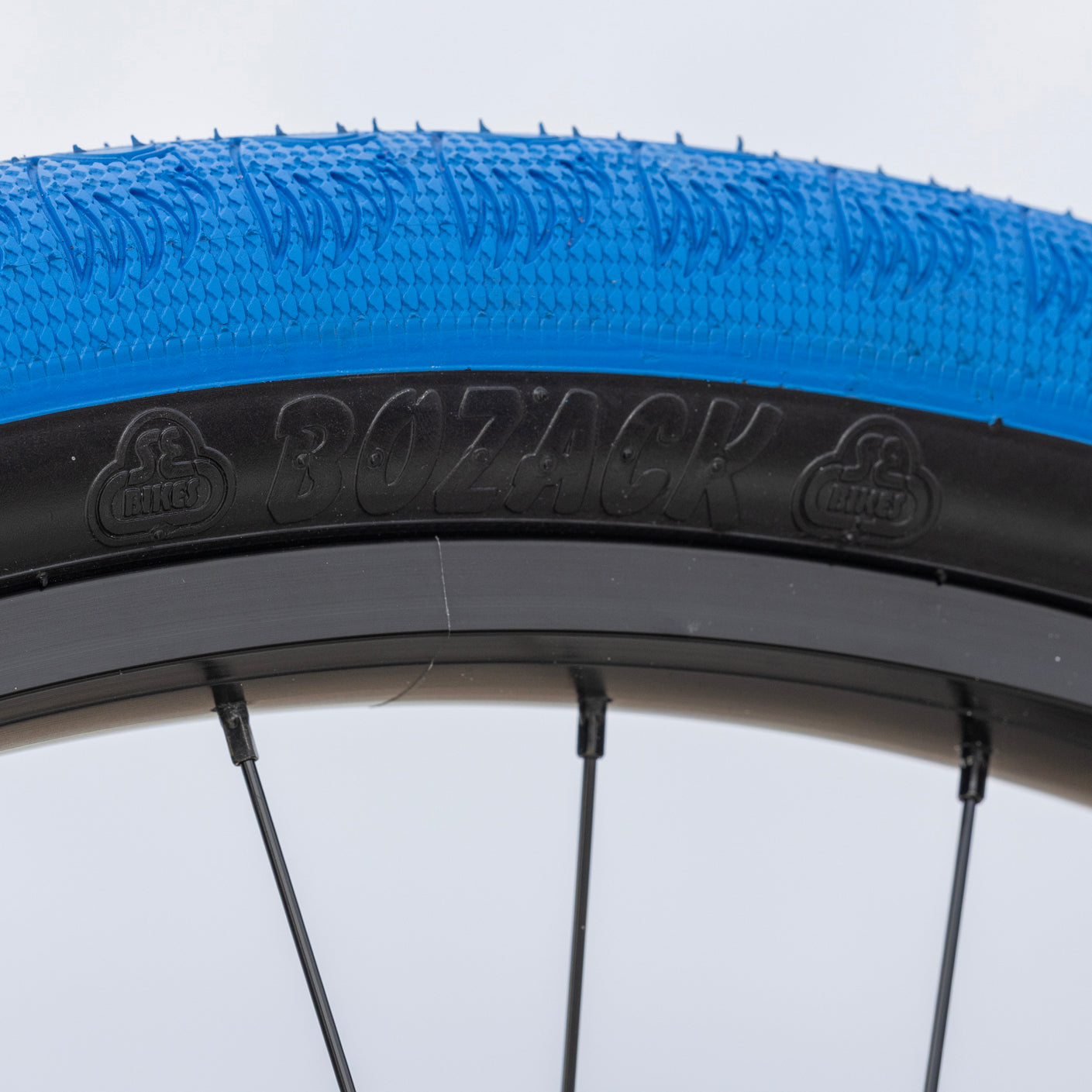

Tires SE Bozack, Street Proven Multi-Purpose Compound, Wrap Around Urban Tread Pattern, Grooved SE Wing Logo, 29" x 2.4" Front & Rear

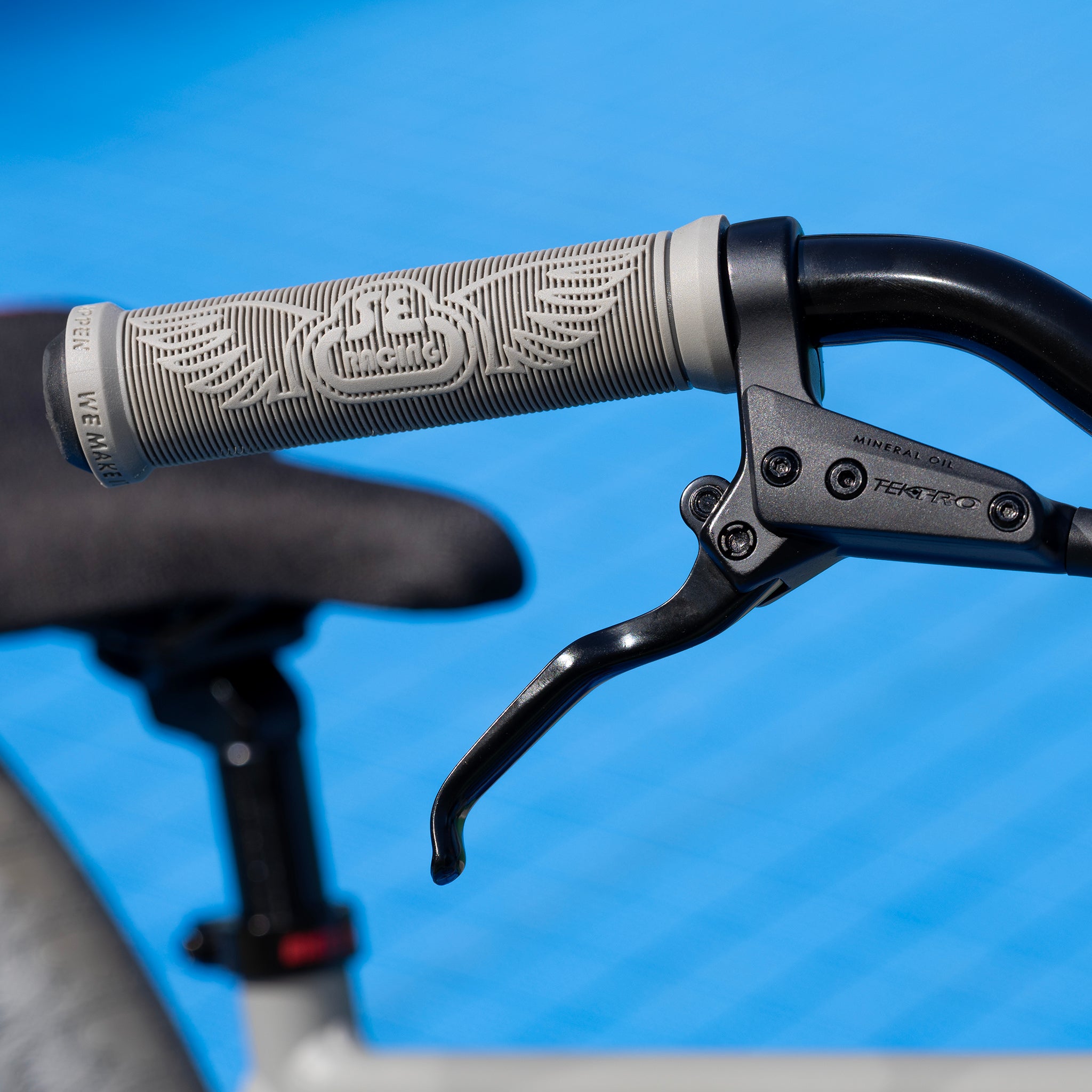

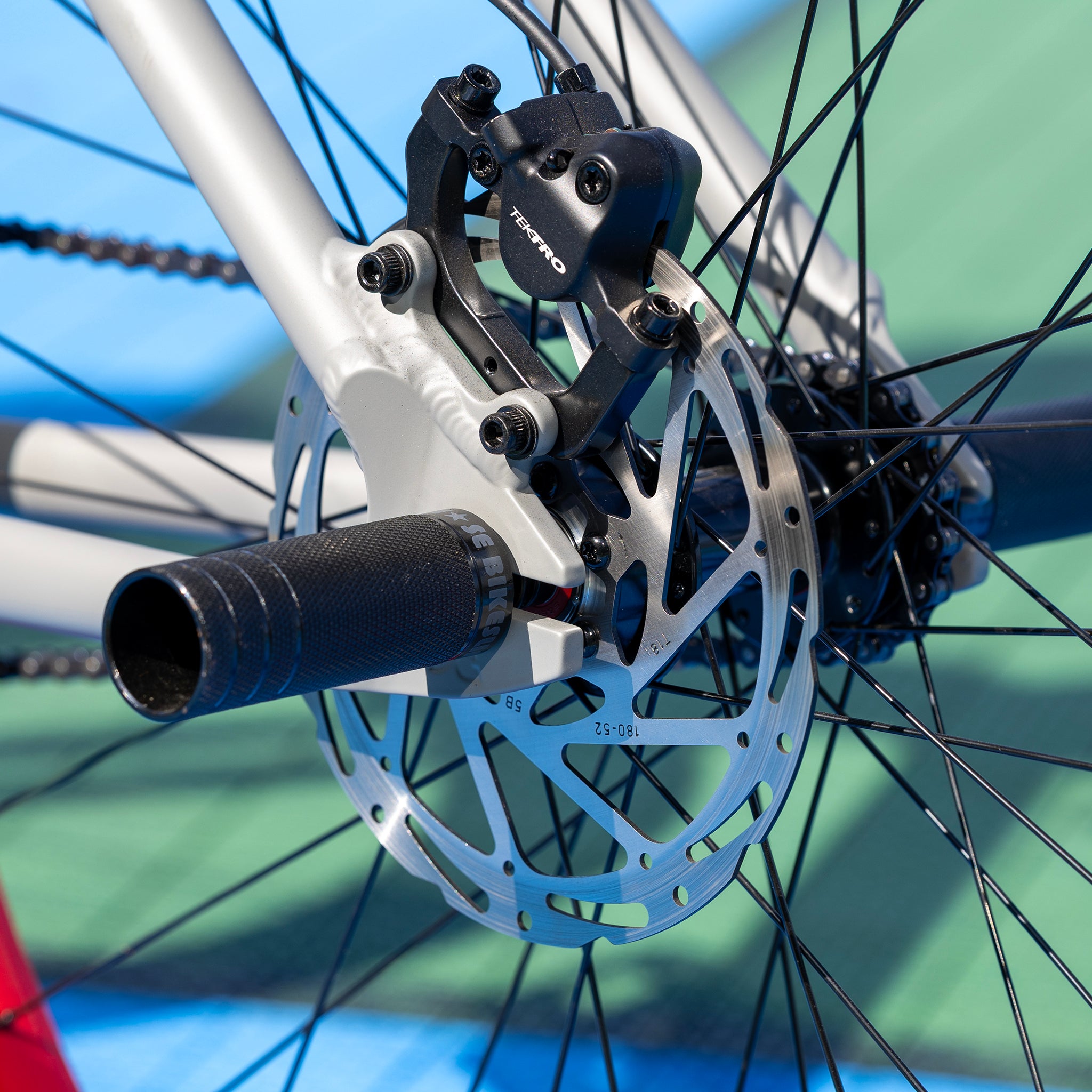

Brakeset Tektro Hydraulic, HD-M281, 2-Piston, Open System, 180mm Rotor
Headset FSA Internal, No.10, 1-1/8"
Handlebar Big Honkin' Cruiser Bar, 30" x 6", 10° Backsweep, 1° Upsweep
Stem SE Bike Life Alloy Top-Load, 48mm Reach
Grips SE Flangeless Mushroom Wing Grips w/ SE Rubber End Plugs
Seat New SE Captive Seat, Concave Design for Ultimate Hold & Comfort
Seatpost Micro-Adjust Alloy, 27.2mm
Accessories SE Bike Life Wheelie Pegs, Alloy Valve Caps

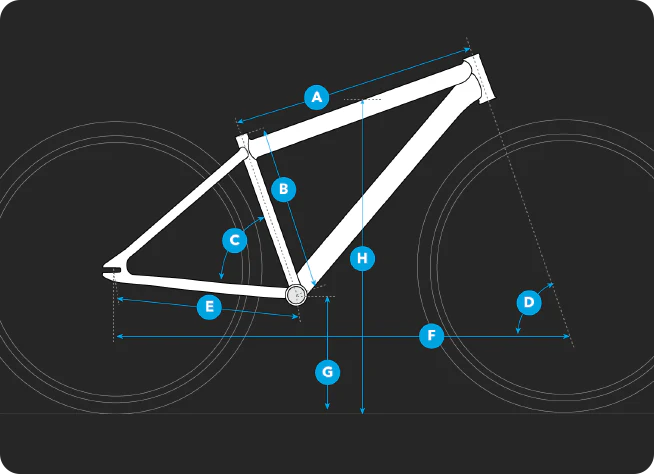

GEOMETRY
A Top Tube, Actual 23.6"
B Seat Tube, Center To Top 16.9"
C Seat Tube Angle 71°
D Head Tube Angle 71°
E Chainstay Length 18.1"
F Wheelbase 43.4"
G Bottom Bracket Height 12.24"
H Standover 30.9"
Stem 48mm
Handlebar Width 30"
Crank 170mm
Wheel Size 29"
Seat Post Diameter 27.2mm
Geometry diagram
