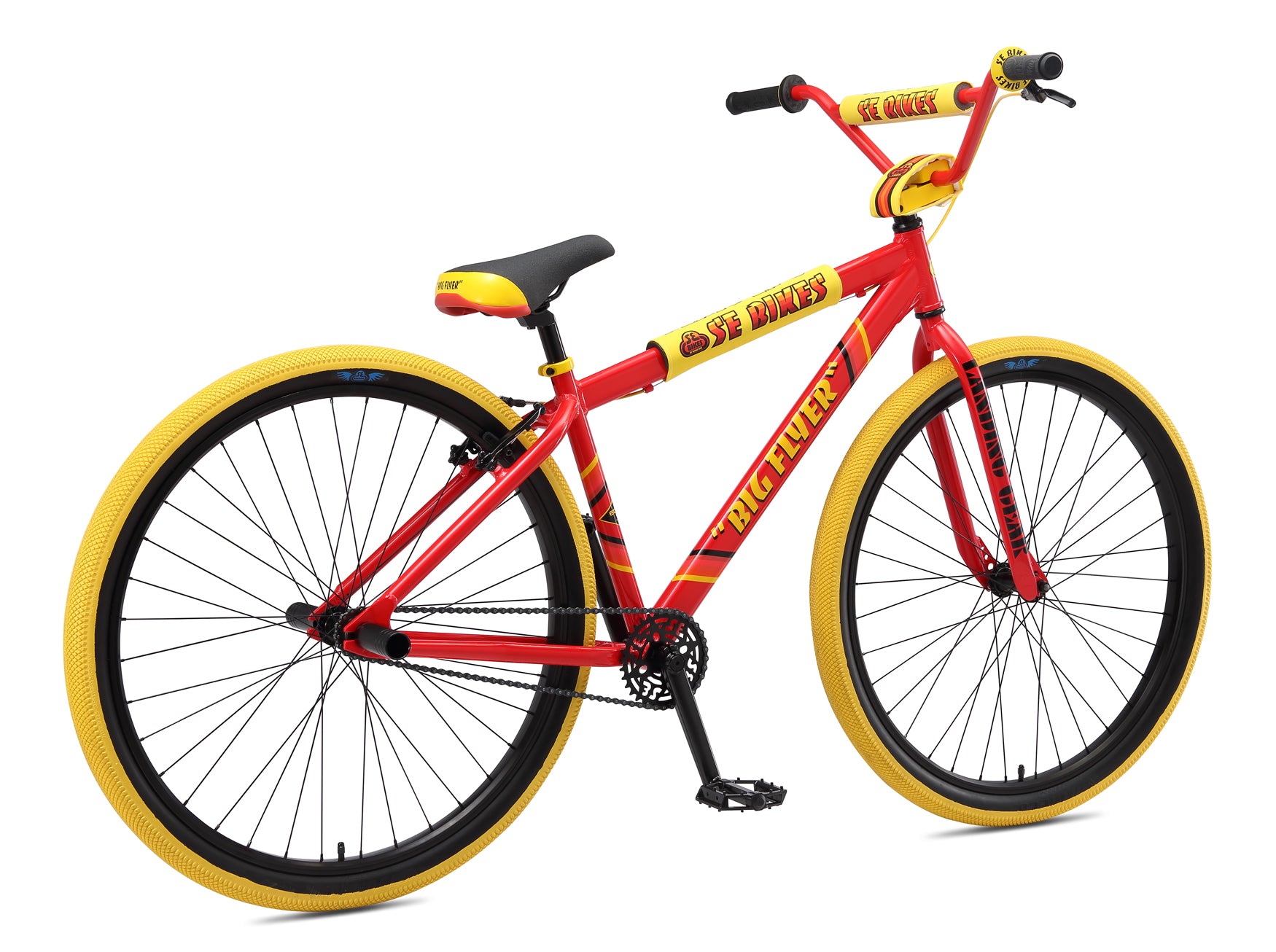

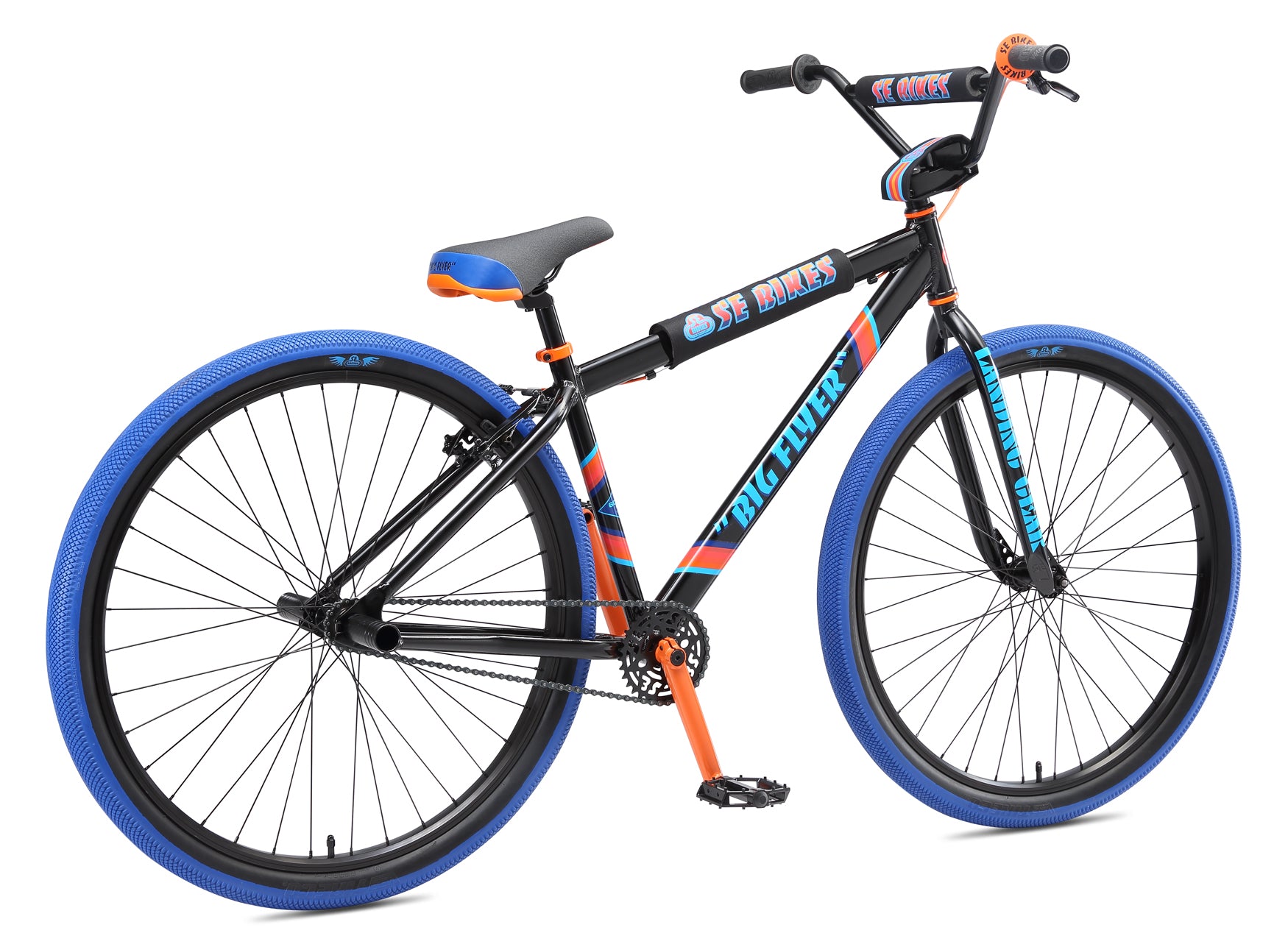

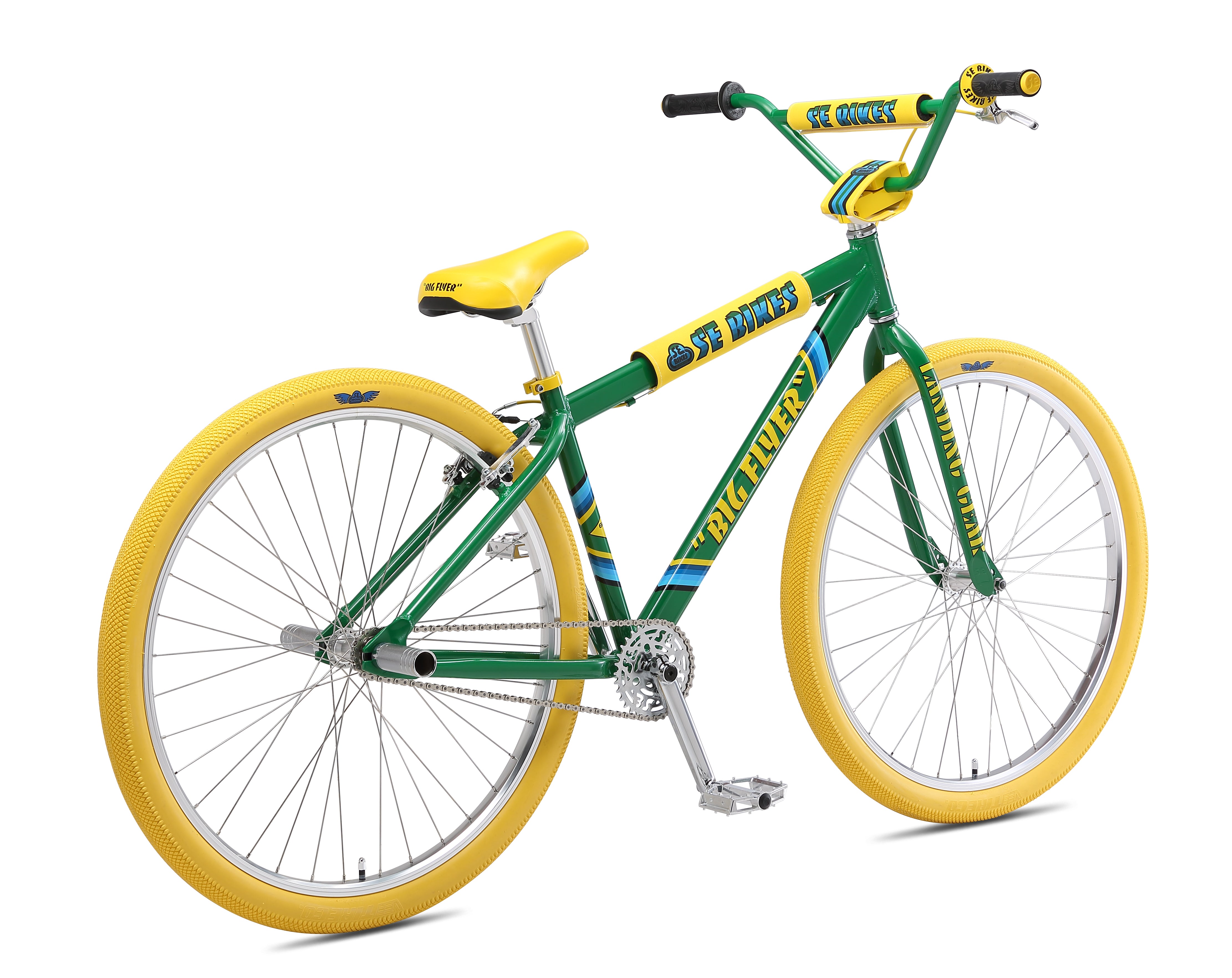

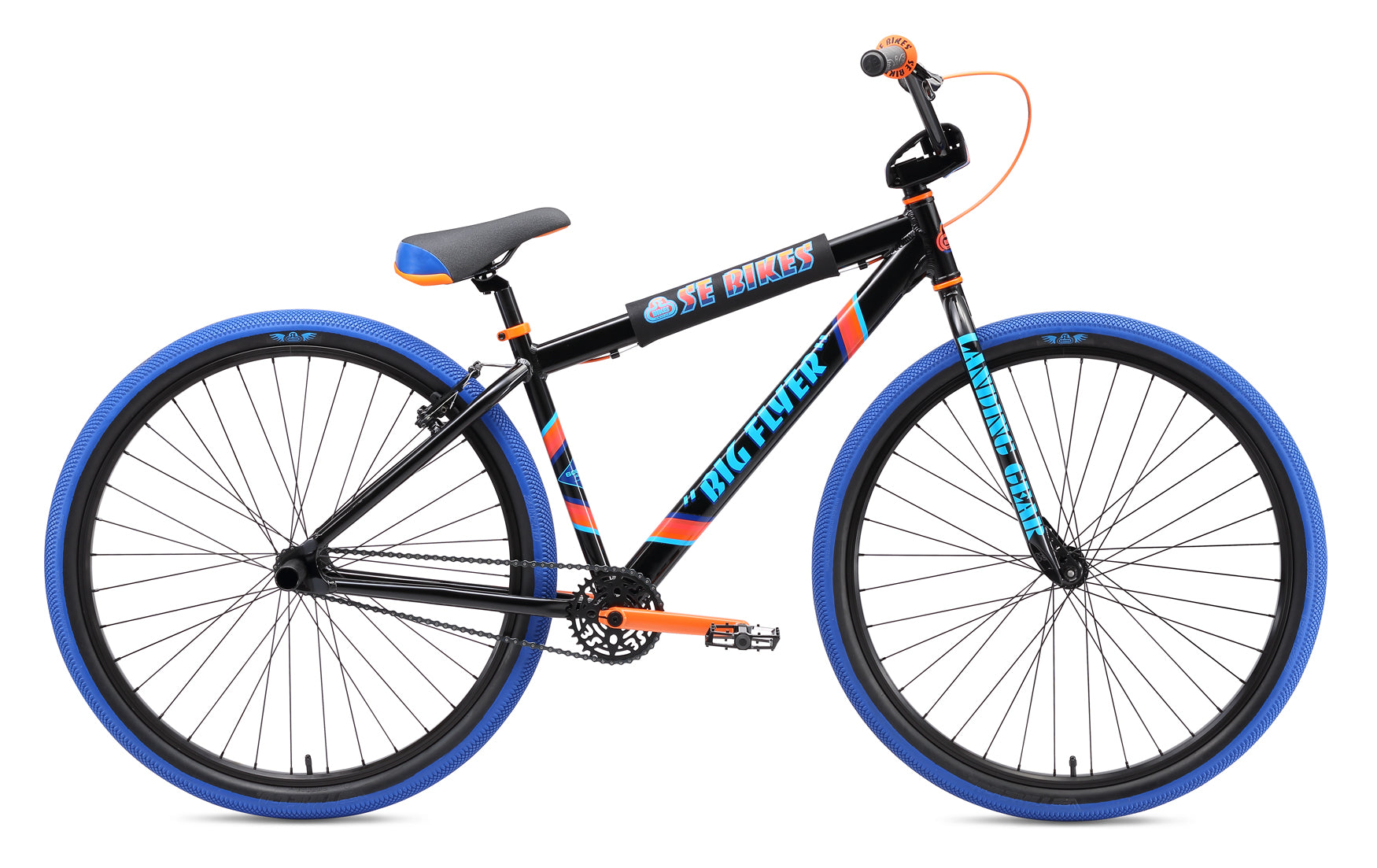

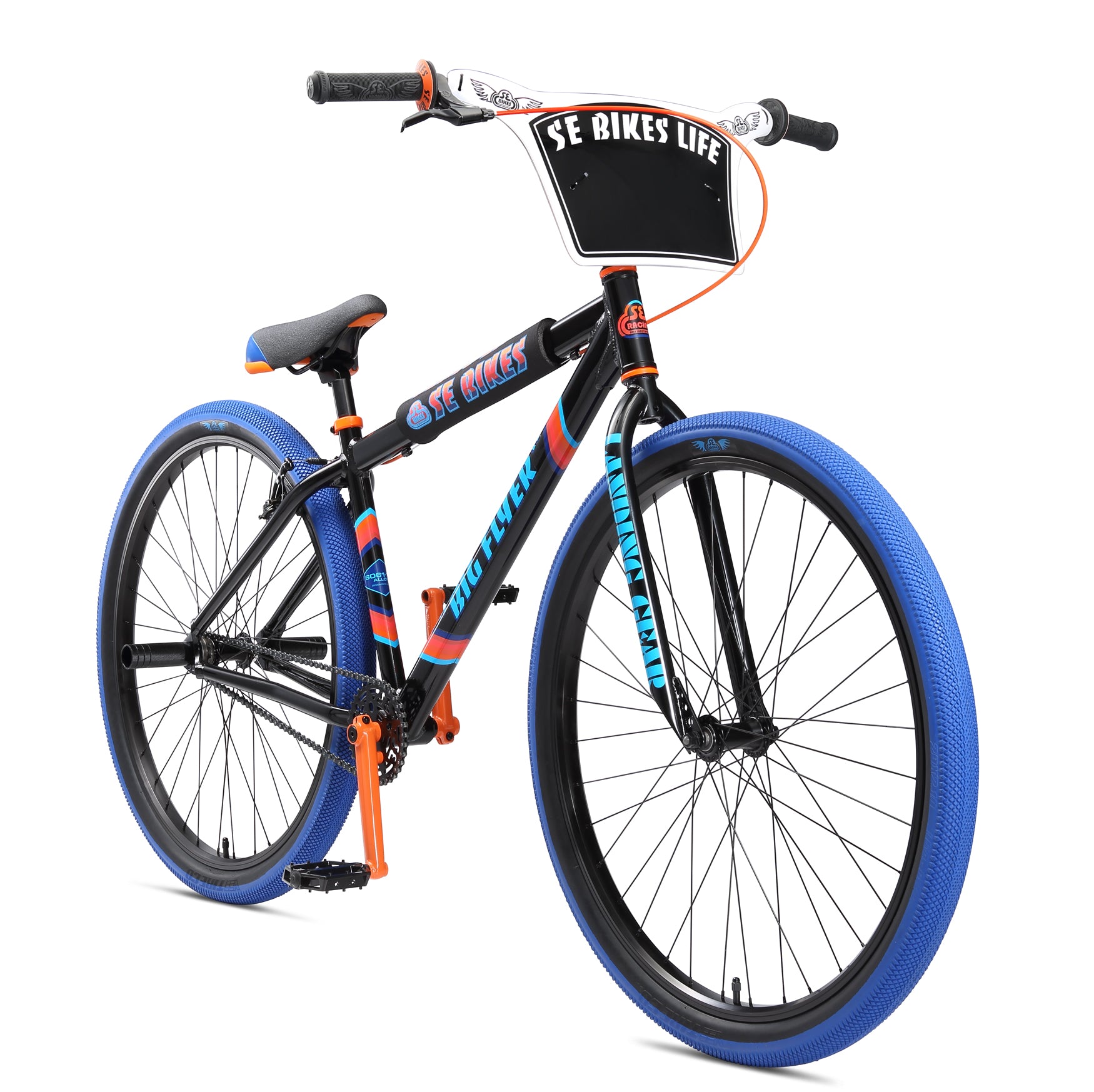

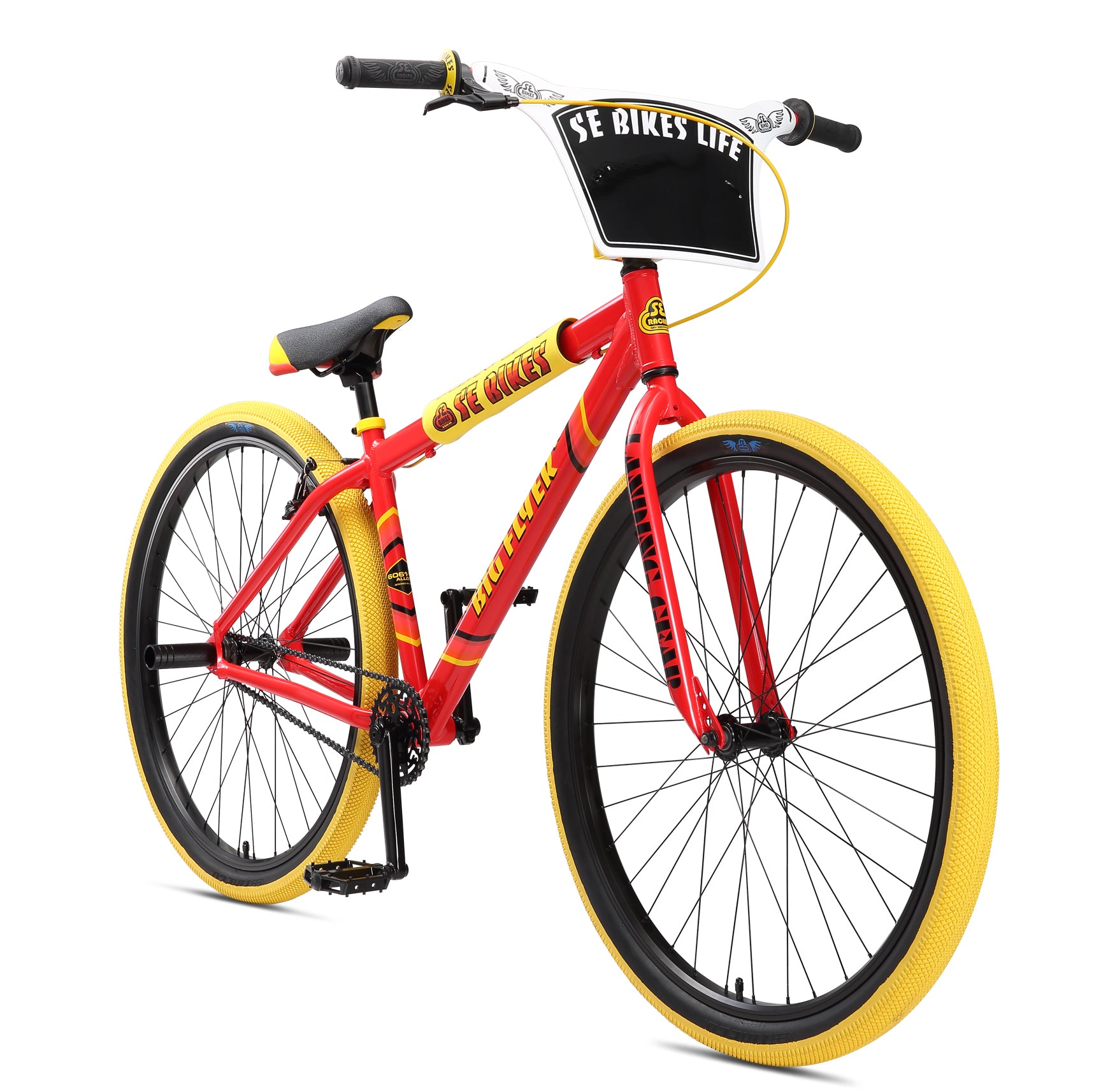

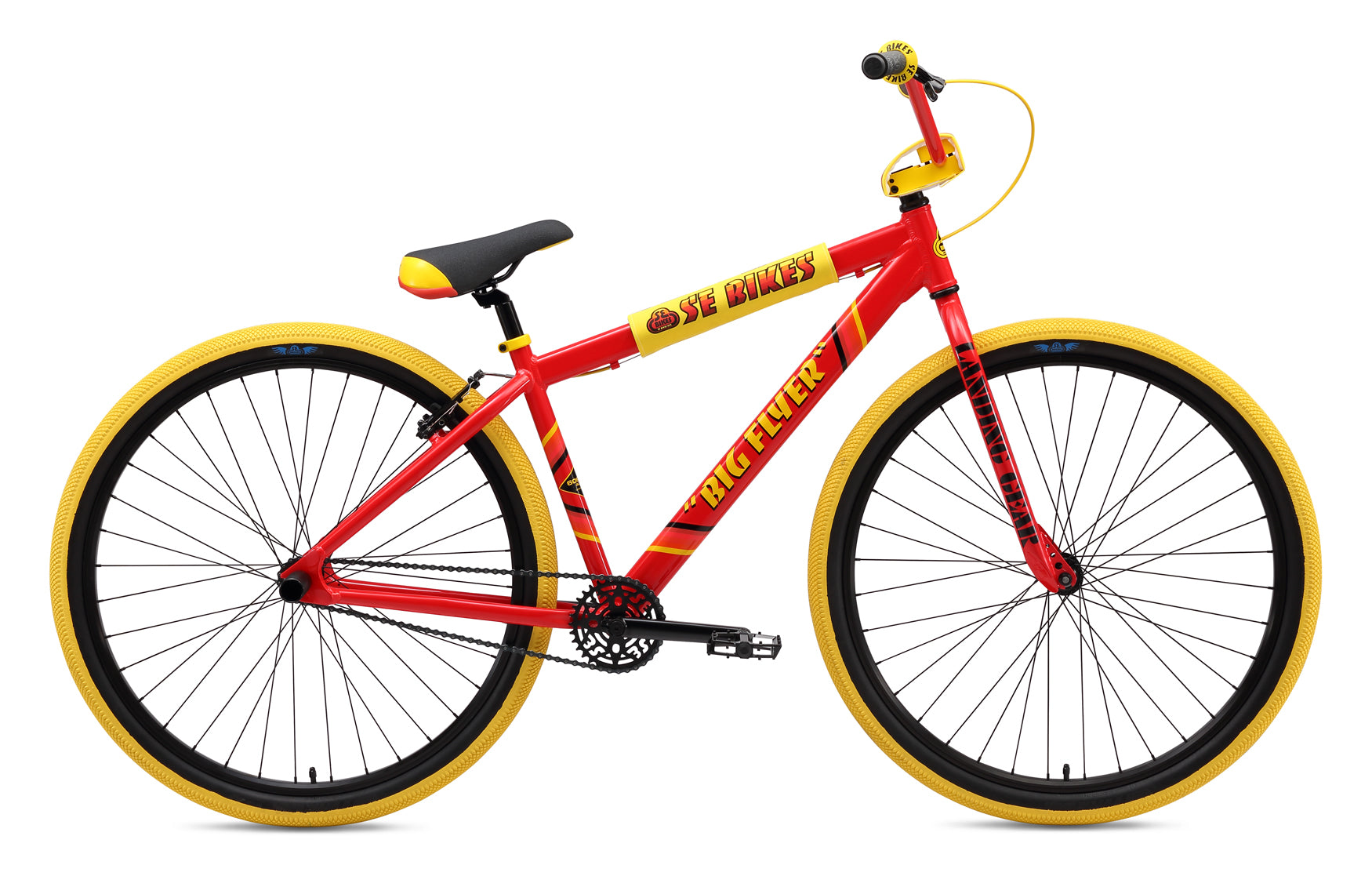

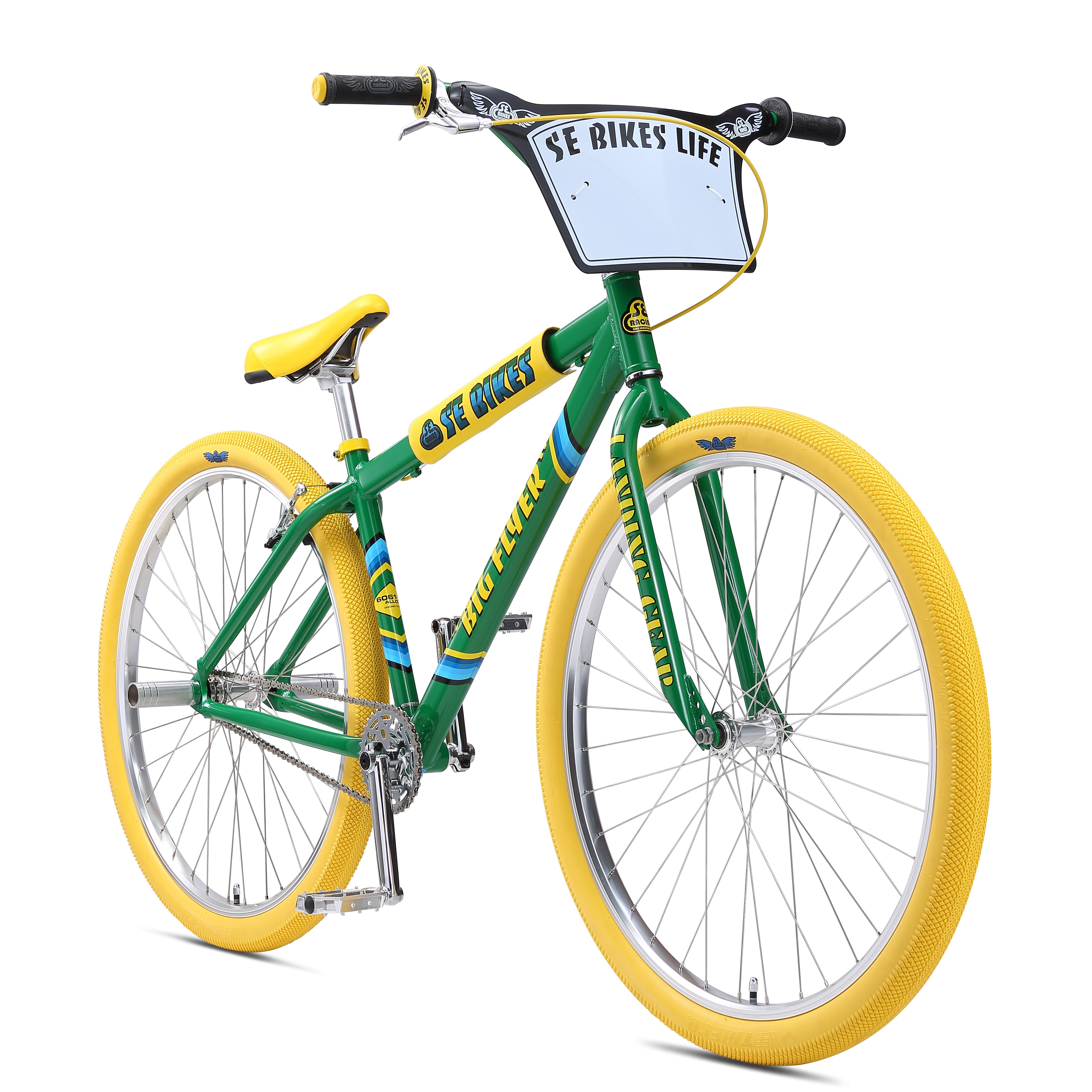

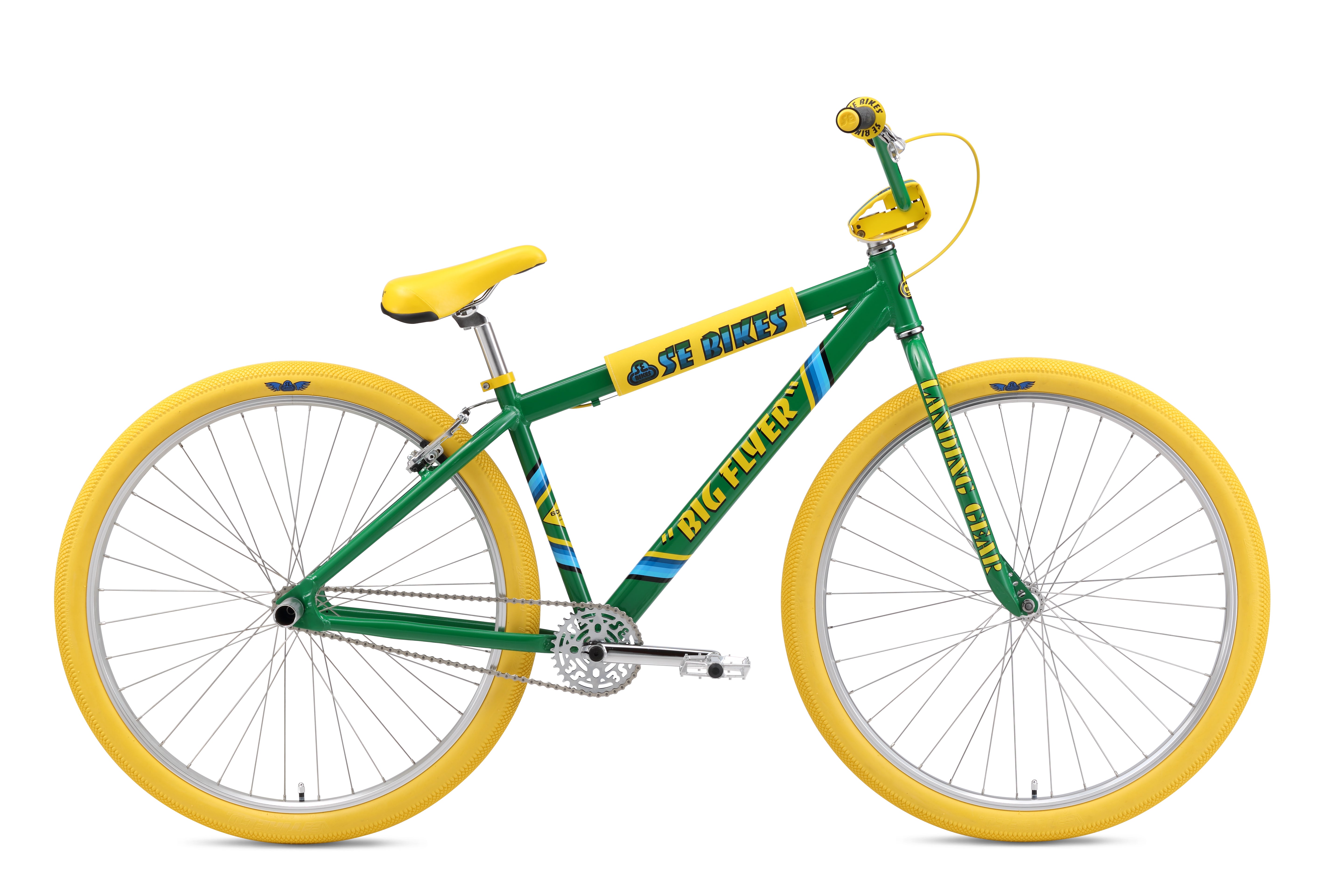

Big Flyer 29" (2018)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Euro Bottom Bracket, SE Wave Dropouts |
| Fork | Landing Gear |
| Crankset | SE 3-pc Cr-Mo, 175mm, Euro-Sealed Bearing Bottom Bracket, 33T SE Sprocket |
| Pedals | FPD Alloy Platform, Cr-Mo Axle |
| Chain | KMC Z410A |
| Wheelset | SE Racing Alloy 36H Hubs w/ Double-wall Rims, 15T Freewheel |
| Tires | Vee Tire Co x SE Racing Speedster, 29" x 2.10" Front & Rear |
| Brakeset | Promax V-Brake |
| Brake Levers | Promax 2-Finger Alloy |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | Big Honkin' Cruiser Bar, 30" x 6" |
| Stem | Retro Alloy Top-Load, 55mm Reach |
| Grips | SE Racing Mushroom Wing Grips w/ SE Rubber End Plugs & Donuts |
| Seat | SE Big Flyer Seat w/ Grippy Top Cover |
| Seatpost | Race Rocker Micro-Adjust Alloy, 27.2mm |
| Accessories | SE Bikes Life Number Plate, SE Bikes Padset, Alloy Valve Caps, SE Wheelie Pegs |
| Wheel Size | 29" |
| Weight | 28.4 lbs / 12.88 kgs |
Specifications subject to change without notice.

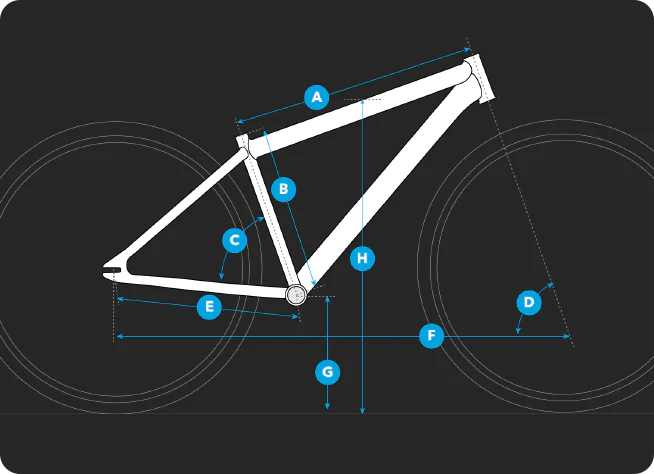

GEOMETRY
| A | Top Tube, Actual | 23.5" |
| B | Seat Tube, Center To Top | 16.9" |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 71° |
| E | Chainstay Length | 18" |
| F | Wheelbase | 43.5" |
| G | Bottom Bracket Height | 12" |
| H | Standover | 30.5" |
| Stem | 55mm | |
| Handlebar Width | 30" | |
| Crank | 175mm | |
| Wheel Size | 29" | |
| Seat Post Diameter | 27.2mm |
